LED rasvjeta dvorane

RZB 921704.003.76 LED svjetlo za velike prostorije

Kataloški br:: 2977740 - 62
Oznaka:: 921704.003.76
EAN:: 4051859729587

(0)

Kataloški br:: 2977740 - 62
Oznaka:: 921704.003.76
EAN:: 4051859729587

Dostupno online (Skladište: Njemačka)

Dostava: 14.07.2025 do 16.07.2025

Prodaja i slanje od: Architektengruppe S71 d.o.o.

1,715.00 KM

sa PDV Troškovi dostave

Komada

(0)

Prikaži recenzije

RZB

Tehničke specifikacije

Klasa energetske učinkovitosti	n.rel. (EENRPS00)
Protection class according to IEC 61140	I
Outer diameter	570 mm
Reflector	Other
Lamp holder	None
Connection type	Other
Housing colour	Black
Voltage type	AC
Suitable for lamp power	85-85 W
Type of control gear	LED operating device current-controlled
Colour rendering index CRI	80-89
Ball-proof	FALSE
Height/depth	509 mm
Housing material	Aluminium
Lamp type	LED not exchangeable
Suitable for emergency lighting	FALSE
Light distribution	Symmetric
Material reflector	Plastic
Impact strength	IK03
Nominal voltage	230-240 V
Emergency power supply integrated	FALSE
Degree of protection (IP)	IP65
With protective cover	TRUE
With light source	TRUE
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24	TRUE
Suitable for number of light sources	1
With control gear	TRUE
Beam angle	41-80° - Wide beam
Nominal current	354-370 mA
Colour temperature	4000-4000 K
Max. system power	85 W
Rated luminous flux according to IEC 62722-2-1	11700 lm
Colour of light	White
Constant light output (CLO)	FALSE
Type of wiring	Ending
Colour consistency (McAdam ellipse)	SDCM5
Total harmonic distortion	0.10
Degree of protection (NEMA)	Other
Rated ambient temperature according to IEC 62722-2-1	-30-50 °C
Filament test according to IEC 60695-2-11	650 °C - 30 s
LED nominal current at constant current	354-370 mA
Dimming 0-10 V	FALSE
Dimming 1-10 V	FALSE
Dimming DALI	TRUE
Dimming DMX	FALSE
Dimming potentiometer (integrated)	FALSE
Dimming GPRS	FALSE
Dimming LineSwitch	FALSE
Dimming manufacturer's proprietary system	FALSE
Dimming mains voltage modulation	FALSE
Dimming phase cut-off (trailing edge)	FALSE
Dimming phase cut-on (leading edge)	FALSE
Dimming programmable	FALSE
Dimming RF	FALSE
Dimming Sine Wave Reduction	FALSE
Dimming Touch and Dim	FALSE
Dimming Zigbee	FALSE
Dimming with push-button	FALSE
No dim function	FALSE
Light distributor	Refractor lens
Luminaire efficacy	138 lm/W
Dimming DSI	FALSE
Suitable for auxiliary lamp	FALSE
Max. number of luminaires per miniature circuit breaker C16 (MCB)	8
Max. number of luminaires per miniature circuit breaker B16 (MCB)	4
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)	80 %
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)	10 %
Colour of light adjustable	No
Luminous flux adjustable	Continuously variable
Beam angle adjustable	No
Exchangeable control gear	TRUE
Power factor	0.95
Vrsta proizvoda	LED svjetlo za velike prostorije

Opis

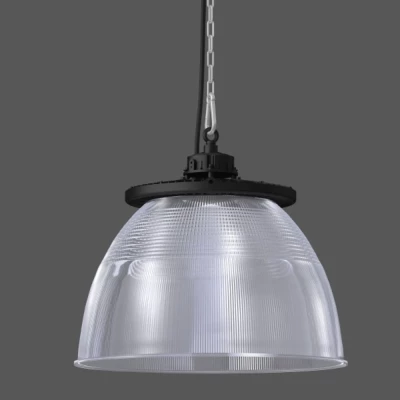

Okrugli reflektor za dvoranu za ovjes na lancu ili užetu. Robusno kućište od tlačno lijevanog aluminija s ušicom, plastificirano. Okomita rashladna rebra osiguravaju stalnu disipaciju topline i time osiguravaju optimalno upravljanje toplinom. Difuzor od antirefleksnog kaljenog sigurnosnog stakla (ESG), prozirnog. Refraktorska plastika (PMMA) prozirna. Primarna kontrola svjetla s visokoučinkovitim površinskim LED-om i refraktorom od plastike (PMMA) za optimalno ograničenje odsjaja UGR< 19. Jednostavna montaža zahvaljujući ovjesu u jednoj točki. Ovjes njihala pomoću lanca ili čelične sajle na licu mjesta. S priključnim kabelom (1,5 m). Raspon zatamnjenja 10% do 100%. Stropni i zidni nosači dostupni kao dodatna oprema. Svjetiljke s ograničenom površinskom temperaturom prema DIN EN 60598-2-24 za upotrebu u okruženju u kojem se mogu očekivati naslage vodljive prašine na rasvjetnom tijelu. Odobreno za upotrebu u industriji hrane i pića.

Ovaj tekst je strojno preveden.
