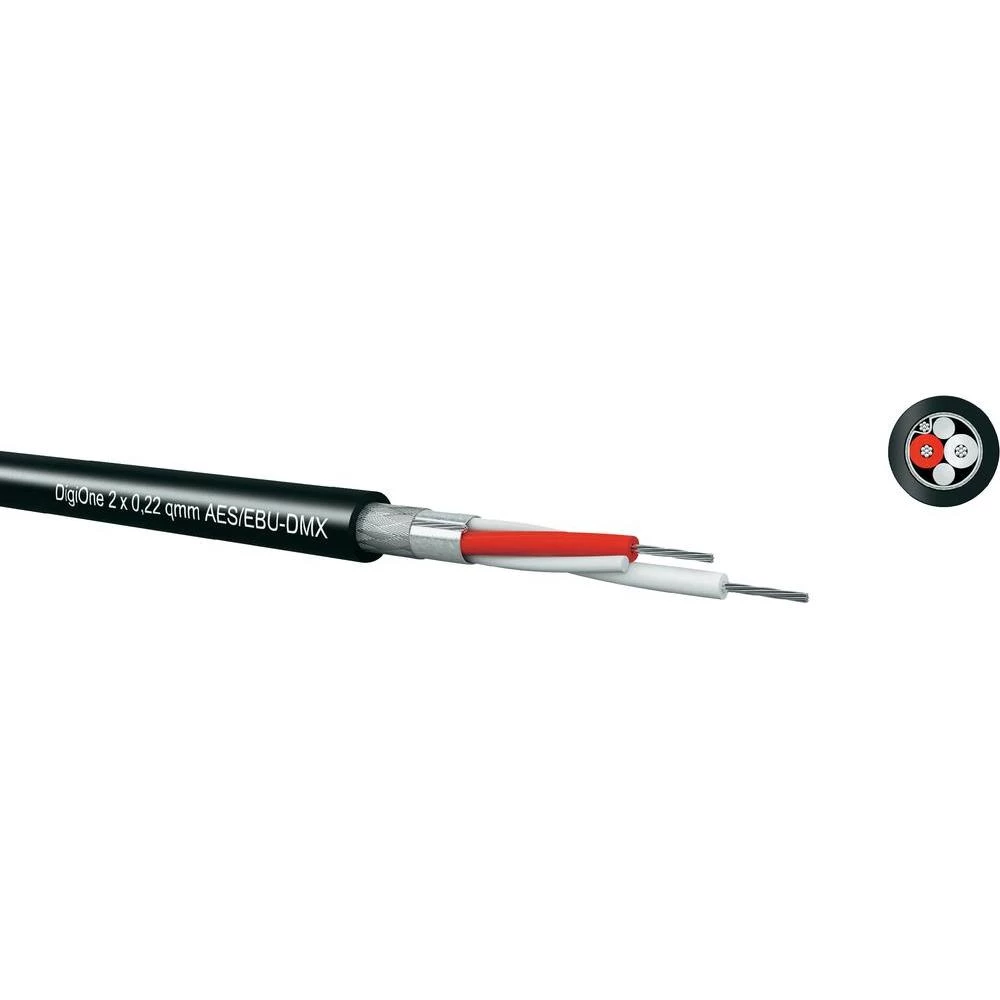

DigiOne 2x0,22qmm FRNC,DMX, digitalcable FRNC, one pair
- Kataloški br:
- 486033 - 62
- Kataloški br:
- 486033 - 62
DigiOne 2x0,22qmm FRNC,DMX, digitalcable FRNC, one pair
Cijena na upit
0.00 KM
Komada
Prodaja i slanje od:
Architektengruppe S71 d.o.o.
Komada
Tehničke specifikacije
Tehničke specifikacije
- Capacity (approx. XX pF/m) 46 c/c: 89 c/s
- Testing voltage: 250V c/c; 1000V c/c
- Characteristic impedance: 0,3 - 10,0 MHz: 110 Ohm +/-10%
- Attenuation: 0,3 MHz: approx. 1,0 db/100m 1,0 MHz: approx. 2,2 db/100m 3,0 MHz: approx. 4,0 db/100m 10,0 MHz: approx. 7,1 db/100m
- Temperature range: static: -25°C to +70°C dynamic:-5°C to +70°C
- Bending radius: min. 12 x O.D.
| ATT.CALC_CROSS_SECTION_WIRES_PART1_2 | 2 x 0.22 mm² |
| Određene značajke kabela | Bez halogena, Oklopljeni, Vatrostalno, Fleksibilni |
| Product Specifications | Capacity (approx. XX pF/m) 46 c/c: 89 c/s |
| Testing voltage | 250V c/c; 1000V c/c |
| Characteristic impedance | 0,3 - 10,0 MHz: 110 Ohm +/-10% |
| Attenuation | 0,3 MHz: approx. 1,0 db/100m 1,0 MHz: approx. 2,2 db/100m 3,0 MHz: approx. 4,0 db/100m 10,0 MHz: approx. 7,1 db/100m |
| Temperature range | static: -25°C to +70°C dynamic:-5°C to +70°C |
| Bending radius | min. 12 x O.D. |
| Vanjski promjer | 5.2 mm |
| bez halogena | Da |
| boja | Crna |
| proizvođač-br. dijela | 94H202200 |
| roba na metre | Da |
| sadržaj | Roba na metre |
| sklapanje svitka | 7 x 0.22 mm |
| tip (tip proizvođača) | 94H202200 |
| zapakirano | Ne |
| zaštićeno | Da |
