Eaton Y7-170623 FID zaštitna sklopka/zaštitna sklopka za vodove 1-fazni 40 A 0.03 A

Kataloški br:: 2622152 - 62
Oznaka:: Y7-170623
EAN:: 4015081672073

(0)

Kataloški br:: 2622152 - 62
Oznaka:: Y7-170623
EAN:: 4015081672073

Dostava za 6 sedmica

Prodaja i slanje od: Architektengruppe S71 d.o.o.

Cijena na upit

0.00 KM

sa PDV Troškovi dostave

Komada

(0)

Prikaži recenzije

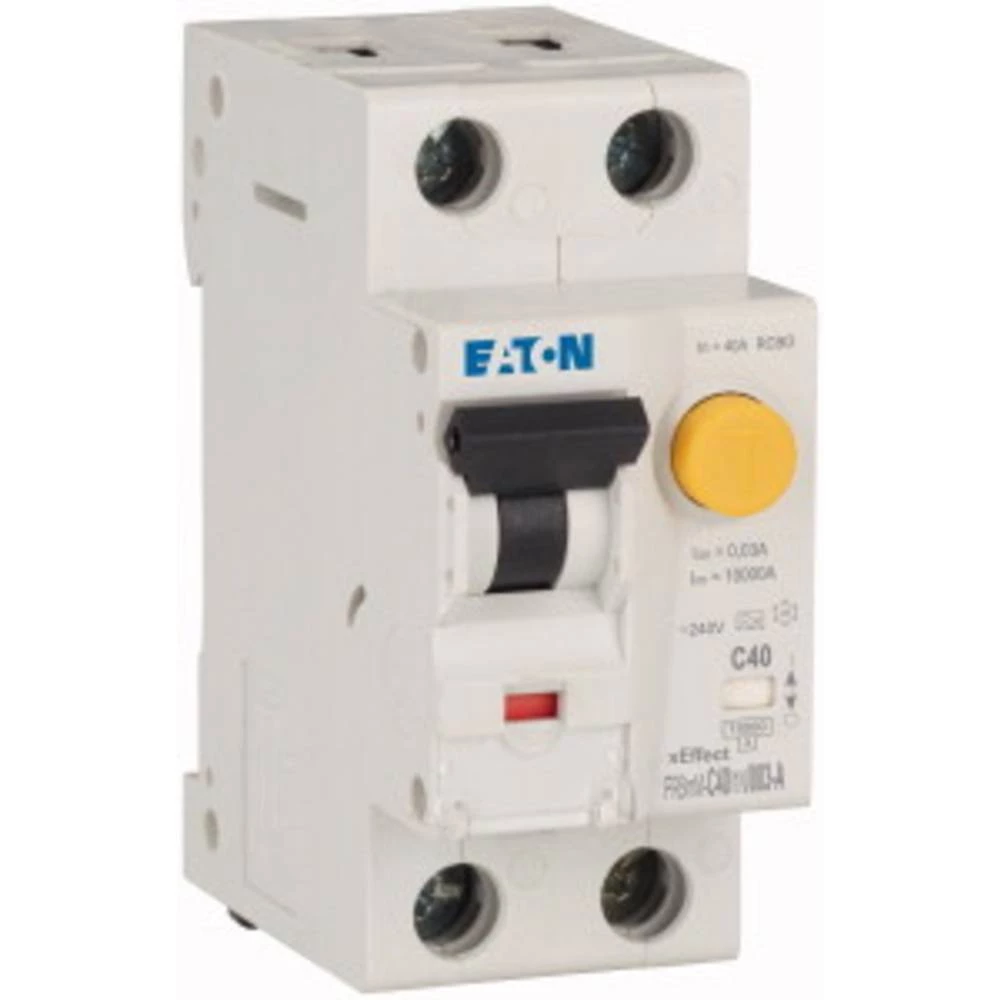

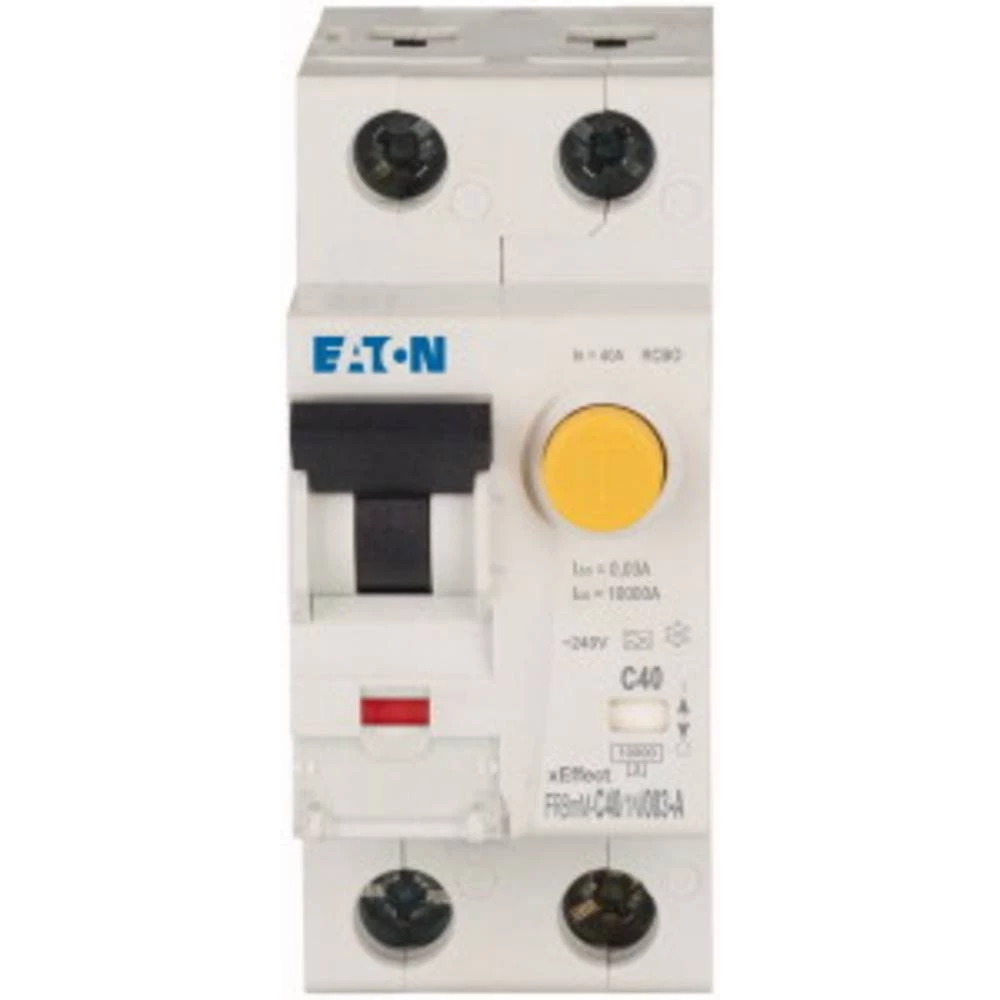

Eaton Y7-170623 FID zaštitna sklopka/zaštitna sklopka za vodove 1-fazni 40 A 0.03 A

Tehničke specifikacije

Izvedba	1 pol + N
Sadržaj	1
Nazivna struja	40
Nazivna struja - zaokružena	40
Izvedba	1-fazni
Nazivna diferencijalna struja	0.03
Karakteristike okidanja	A
Voltage type	AC
Built-in depth	75.5
Rated current	40
Rated voltage	240
Release characteristic	C
Rated insulation voltage Ui	500
Rated fault current	0.03
Leakage current type	A
Surge current capacity	0.25
Current limiting class	3
Over voltage category	3
Pollution degree	2
Width in number of modular spacings	2
Frequency	50 Hz
Degree of protection (IP)	IP20
Number of protected poles	1
Concurrently switching neutral conductor	TRUE
Rated short-circuit breaking capacity according to IEC 60947-2	0
Connectable conductor cross section solid-core	1-25
Connectable conductor cross section multi-wired	1-25
With interlocking device	FALSE
Ambient temperature during operating	25-40
Flush-mounted installation	FALSE
Number of poles (total)	2
Anti-nuisance tripping version	FALSE
Rated impulse withstand voltage Uimp	4
Rated short-circuit breaking capacity Icn according to EN 61009-1	10
Disconnection characteristic	Undelayed
Rated short-circuit breaking capacity according to EN 61009	10
Vrsta proizvoda	FID zaštitna sklopka/zaštitna sklopka za vodove

Opis

FI/LS kombinacija, 40 A, 30 mA, LS karakteristika: C, 1p+N, FI karakteristika: A
Kompaktna zaštitna sklopka/minijaturna zaštitna sklopka za različite primjene.
