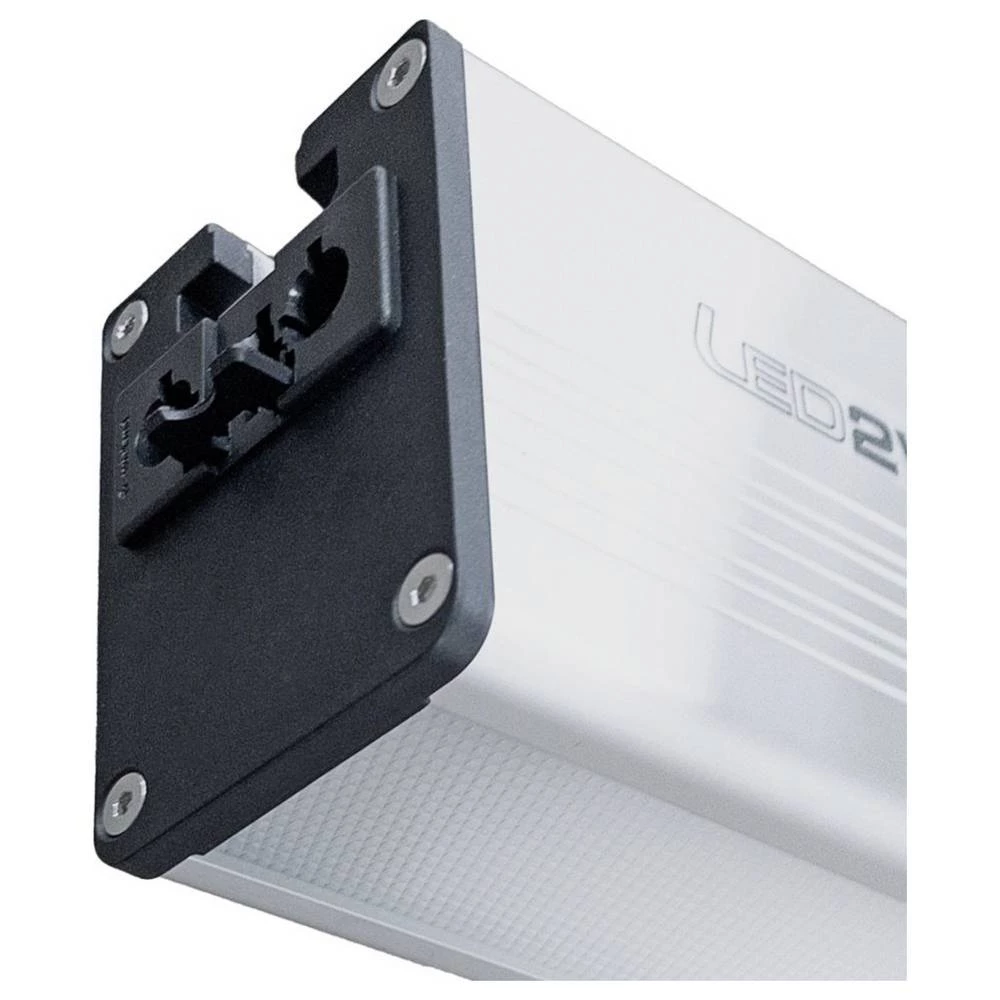

LED2WORK PROFILED AC 23 W 3674 lm 100 ° (D x Š x V) 1000 x 65 x 45 mm 1 St.
- Kataloški br:
- 3384533 - 62
- Oznaka:
- 150714-08
- EAN:
- 4260556626468
- Kataloški br:
- 3384533 - 62
- Oznaka:
- 150714-08
- EAN:
- 4260556626468
LED2WORK PROFILED AC 23 W 3674 lm 100 ° (D x Š x V) 1000 x 65 x 45 mm 1 St.
1,270.00 KM
Komada
Prodaja i slanje od:
Architektengruppe S71 d.o.o.
1,270.00 KM
sa PDV
Troškovi dostave
Komada
Izdvojeno & Detalji
- Snaga= 23 W Svjetlosni tok (phi)= 3674 lm Temperatura boje - tip= 5600 K
Tehničke specifikacije
Tehničke specifikacije
| Tip | PROFILED AC |
| min. pogonski napon | 120 V/AC |
| Pogonski napon maks. | 277 V/AC |
| Pogonski napon | 120 - 277 V/AC |
| Snaga | 23 W |
| Temperatura boje - tip | 5600 K |
| Svjetlosni tok (Φ) | 3674 lm |
| Kut zračenja | 100 ° |
| Priključak | priključak |
| Materijal | aluminij |
| Vrsta zaštite | IP40 |
| Razred zaštite | I |
| Dužina | 1000 mm |
| Širina | 65 mm |
| Visina | 45 mm |
| dim. | (D x Š x V) 1000 x 65 x 45 mm |
| Klasa energetske učinkovitosti | n.rel. (EENRPS00) |
| Protection class according to IEC 61140 | I |
| Width | 45 mm |
| Lamp holder | None |
| Connection type | Other |
| Housing colour | Aluminium |
| Voltage type | AC |
| With movement sensor | FALSE |
| Suitable for lamp power | 23-23 W |
| Type of control gear | Not required |
| Colour rendering index CRI | 80-89 |
| With switch | TRUE |
| Number of poles | 3 |
| Length | 1000 mm |
| Height/depth | 65 mm |
| Material | Metal/plastic |
| Lamp type | LED not exchangeable |
| Electrical connection with connector system | TRUE |
| Suitable for emergency lighting | FALSE |
| Nominal voltage | 120-277 V |
| Emergency power supply integrated | FALSE |
| Degree of protection (IP) | IP40 |
| With light source | TRUE |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | FALSE |
| Covering of the luminaire with thermally insulating material possible | FALSE |
| Suitable for number of light sources | 1 |
| With control gear | TRUE |
| Colour temperature | 5600-5600 K |
| Max. system power | 27 W |
| Rated luminous flux according to IEC 62722-2-1 | 3674 lm |
| Colour of light | White |
| Constant light output (CLO) | FALSE |
| IFTTT support available | FALSE |
| Type of wiring | Ending |
| Rated lifetime L70/B50 at 25 °C | 100000 h |
| Dimming DALI | FALSE |
| Dimming DMX | FALSE |
| Dimming LineSwitch | FALSE |
| Dimming manufacturer's proprietary system | TRUE |
| Dimming mains voltage modulation | FALSE |
| Dimming phase cut-off (trailing edge) | FALSE |
| Dimming phase cut-on (leading edge) | FALSE |
| Dimming programmable | FALSE |
| Dimming RF | FALSE |
| Dimming Sine Wave Reduction | FALSE |
| Dimming Touch and Dim | FALSE |
| Dimming Zigbee | FALSE |
| Dimming with push-button | TRUE |
| No dim function | FALSE |
| Light distributor | Other |
| Luminaire efficacy | 155 lm/W |
| Dimming DSI | FALSE |
| Operation by Bluetooth | FALSE |
| Compatible with Apple HomeKit | FALSE |
| Compatible with Google Assistant | FALSE |
| Compatible with Amazon Alexa | FALSE |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 80 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 10 % |
| Colour of light adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | FALSE |
| Compatible with Casambi | FALSE |
| Energy efficiency class of the light source according to EU regulation 2019/2015 | C |
| With lamp protection basket | FALSE |
| Power factor | 0.79 |
| Vrsta proizvoda | LED svjetlo |
