Instalacijski kabeli

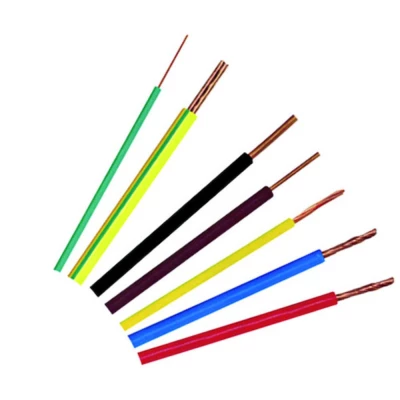

NOVI PVC žični kabel Eca H07V-K 1x2,5 RG100m RAL5010 tamno plava H07V-K 1x2,5 dblau vodič 100 m

Kataloški br:: 2984826 - 62
Oznaka:: H07V-K 1x2,5 dblau
EAN:: 2050009580490

(0)

Kataloški br:: 2984826 - 62
Oznaka:: H07V-K 1x2,5 dblau
EAN:: 2050009580490

Dostupno online (Skladište: Njemačka)

Dostava: 30.04.2025 do 02.05.2025

Prodaja i slanje od: Architektengruppe S71 d.o.o.

200.00 KM

sa PDV Troškovi dostave

Komada

(0)

Prikaži recenzije

H07V-K 1x2,5 dblau vodič 100 m

Tehničke specifikacije

Sadržaj	100
Proizvođač-br. dijela	H07V-K 1x2,5 dblau
Tip	H07V-K 1x2,5 dblau
Nominal cross section conductor	2.5
Material core insulation	Polyvinyl chloride (PVC)
Core identification	Colour
Weight	32
Flame retardant	No
Drain wire	FALSE
Circuit integrity	None
Nominal voltage U	750
Shape of conductor	Round
Conductor material	Copper
Conductor category	Class 5 = flexible
Armouring/reinforcement	None
Permitted cable outer temperature during assembling/handling	5-70
Permitted cable outer temperature after assembling without vibration	-5-70
Core colour	Blue
Nominal voltage U0	450
Screen	FALSE
Number of cores	1
Insulation integrity	None
Max. conductor temperature	70
Protective barrier	None
Outer diameter approx.	3.4
With protective conductor	FALSE
Low smoke (according to EN 61034-2)	FALSE
Halogen free (according to EN 60754-1/2)	FALSE
Oil resistant (according to EN 60811-404)	FALSE
Low temperature resistant (according to EN 60811-504+505+506)	FALSE
Conductor surface	Bare
Reaction-to-fire class according to EN 13501-6	None
Smoke development class according to EN 13501-6	None
Euro class flaming droplets/particles according to EN 13501-6	None
Euro class acidity according to EN 13501-6	None
Min. permitted bending radius, stationary application/permanent installation	19
Twisted cores	FALSE
Cable geometry	Round
Certified for shipboard application	FALSE
Suitable as medium-voltage cable	FALSE
Suitable as high-voltage cable	FALSE
Certified as airport lighting cable	FALSE
Vrsta proizvoda	vodič

Opis

Fleksibilni PVC kabel za ožičenje, finožičani, za unutarnje ožičenje uređaja kao i za zaštićeno polaganje u i na svjetlima, u cijevima (na i ispod žbuke) ali samo za sustave zvona ili signalizacije, kabel nije prikladan za direktno polaganje ispod žbuke, temperatura ugradnje -5°C do +70°C

Ovaj tekst je strojno preveden.
