Instalacijski kabeli

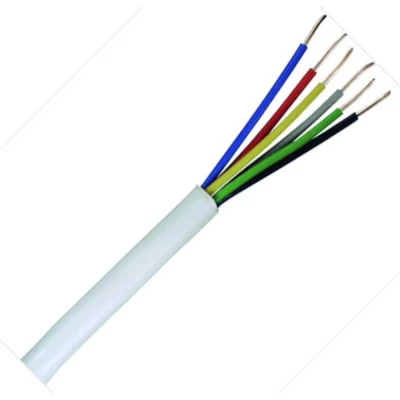

NOVI zvonasti kabel Eca YR 6x0.8 RG100m bijeli YR 6x0,8 RG100 oplašteni vod 100 m

Kataloški br:: 2984907 - 62
Oznaka:: YR 6x0,8 RG100
EAN:: 2050009581299

(0)

Kataloški br:: 2984907 - 62
Oznaka:: YR 6x0,8 RG100
EAN:: 2050009581299

Rok isporuke na upit

Prodaja i slanje od: Architektengruppe S71 d.o.o.

375.00 KM

sa PDV Troškovi dostave

Komada

(0)

Prikaži recenzije

YR 6x0,8 RG100 oplašteni vod 100 m

Tehničke specifikacije

Sadržaj	100
Proizvođač-br. dijela	YR 6x0,8 RG100
Tip	YR 6x0,8 RG100
Nominal cross section conductor	0.8
Material core insulation	Polyvinyl chloride (PVC)
Core identification	Colour
Weight	58
Flame retardant	No
Drain wire	FALSE
Circuit integrity	None
Nominal voltage U	100
Colour outer sheath	White
Shape of conductor	Round
Diameter conductor	0.8
Conductor material	Copper
Material outer sheath	Polyvinyl chloride (PVC)
Conductor category	Class 1 = solid
Armouring/reinforcement	None
Permitted cable outer temperature after assembling without vibration	-5-70
Core colour	Several
Screen	FALSE
Number of cores	6
Insulation integrity	None
Max. conductor temperature	70
Protective barrier	None
Outer diameter approx.	5.8
With protective conductor	FALSE
Low smoke (according to EN 61034-2)	FALSE
Halogen free (according to EN 60754-1/2)	FALSE
Oil resistant (according to EN 60811-404)	FALSE
Low temperature resistant (according to EN 60811-504+505+506)	FALSE
Conductor surface	Bare
Reaction-to-fire class according to EN 13501-6	None
Smoke development class according to EN 13501-6	None
Euro class flaming droplets/particles according to EN 13501-6	None
Euro class acidity according to EN 13501-6	None
Min. permitted bending radius, stationary application/permanent installation	44
Twisted cores	FALSE
Cable geometry	Round
Certified for shipboard application	FALSE
Suitable as medium-voltage cable	FALSE
Suitable as high-voltage cable	FALSE
Certified as airport lighting cable	FALSE
Vrsta proizvoda	oplašteni vod

Opis

YR PVC kabel s plaštom za zvono, PVC-om izolirane preklopne žice, jednožilne, nazivni napon 100V, raspon temperature -5°C do +70°C, za fiksnu instalaciju kao izolacijski kabel na i ispod žbuke, nije za instalaciju jake struje namjene, za prijenos signala u telekomunikacijskim i portafonskim sustavima itd

Ovaj tekst je strojno preveden.
