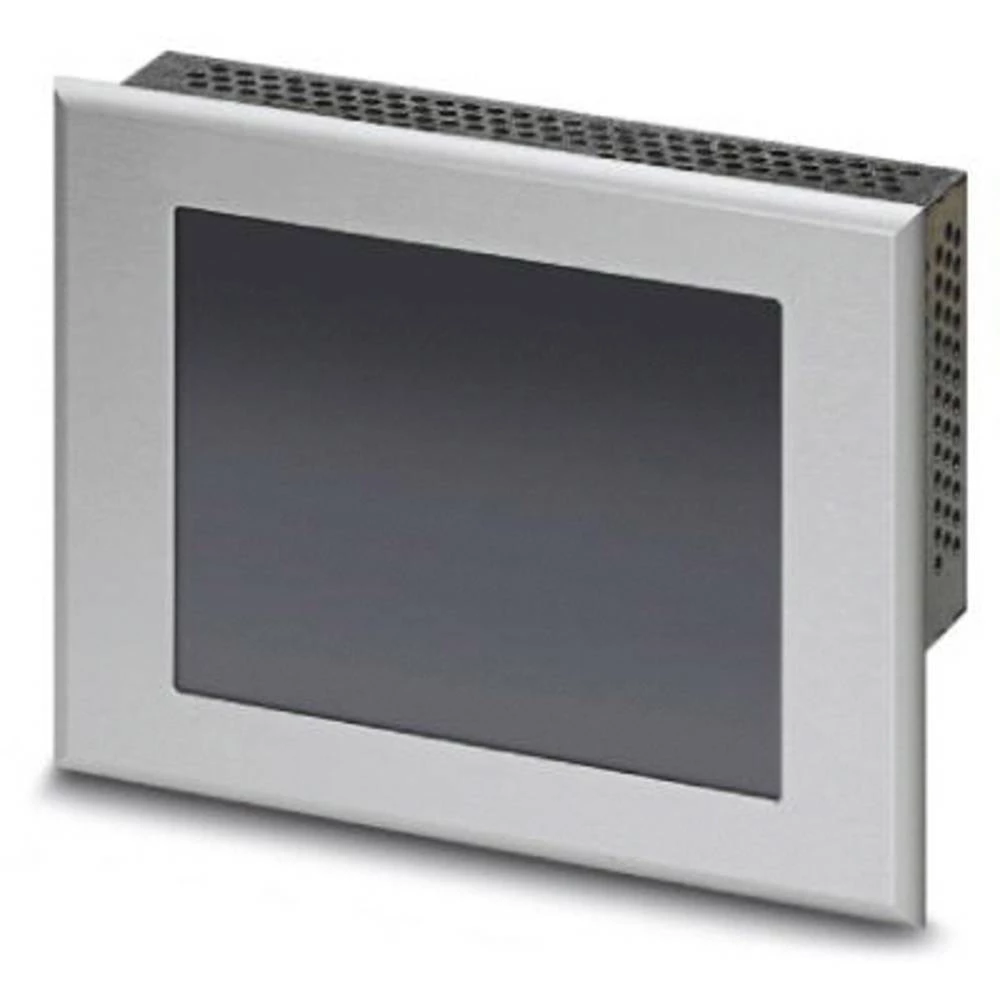

Phoenix Contact 2401080 TP57AM/702000 S00001 plc ploča osjetljiva na dodir
- Kataloški br:
- 2137433 - 62
- Oznaka:
- 2401080
- EAN:
- 4055626096490
- Kataloški br:
- 2137433 - 62
- Oznaka:
- 2401080
- EAN:
- 4055626096490
Phoenix Contact 2401080 TP57AM/702000 S00001 plc ploča osjetljiva na dodir
Cijena na upit
0.00 KM
Komada
Prodaja i slanje od:
Architektengruppe S71 d.o.o.
Komada
Tehničke specifikacije
Tehničke specifikacije
| Proizvođač-br. dijela | 2401080 |
| Tip | TP57AM/702000 S00001 |
| Sučelja | 2x USB Host 2.0 |
| Prikaz | da |
| Rezolucija | 320 x 240 |
| Maks. temperatura okoline | +50 |
| Min. temperatura okoline | 0 |
| Visina | 126 |
| Dužina | 5 |
| Širina | 168 |
| Vrsta zaštite | IP65 IP20 |
| Mjere za ugradnju | 160 mm x 118 mm x 54 |
| Sadržaj | 1 |
| dim. | (D x Š x V) 5 x 168 x 126 mm |
| Montaža | Prednja ugradnja |
| Built-in depth | 54 |
| Operating temperature | 0-50 |
| Voltage type of supply voltage | DC |
| Supporting protocol for LON | ne |
| Supporting protocol for ASI | ne |
| Supporting protocol for PROFIBUS | ne |
| Supporting protocol for CAN | ne |
| Supporting protocol for INTERBUS | ne |
| Supporting protocol for KNX | ne |
| Supporting protocol for Modbus | ne |
| Supporting protocol for Data-Highway | ne |
| Supporting protocol for DeviceNet | ne |
| Supporting protocol for SUCONET | ne |
| Supporting protocol for other bus systems | ne |
| With colour display | ne |
| Number of pixels, horizontal | 320 |
| Number of pixels, vertical | 240 |
| With touch screen | ne |
| Degree of protection (IP), front side | IP65 |
| Width of the front | 168 |
| Height of the front | 126 |
| Supporting protocol for SERCOS | ne |
| Supporting protocol for INTERBUS-Safety | ne |
| Wall mounting/direct mounting | ne |
| Supporting protocol for AS-Interface Safety at Work | ne |
| Supporting protocol for DeviceNet Safety | ne |
| Supporting protocol for EtherNet/IP | ne |
| Supporting protocol for Foundation Fieldbus | ne |
| Supporting protocol for PROFINET CBA | ne |
| Supporting protocol for PROFINET IO | ne |
| Supporting protocol for PROFIsafe | ne |
| Supporting protocol for SafetyBUS p | ne |
| Type of display | STN |
| Vrsta proizvoda | PLC ploča osjetljiva na dodir |
Opis
Opis
Touch panel sa 14,5 cm / 5,7 "-FSTN zaslonom (analogni otporni (poliester)), 320 x 240 piksela (QVGA), 256 nivoa sive boje, ARM9 ™, 200 MHz, 2x USB Host 2.0, 1x Ethernet (10/100 MBit / s), RJ45, Windows CE 5.0 i korisnički softver: TSvisRT. (Autobusni sustav: bez)
Ovaj tekst je strojno preveden.
Ovaj tekst je strojno preveden.
