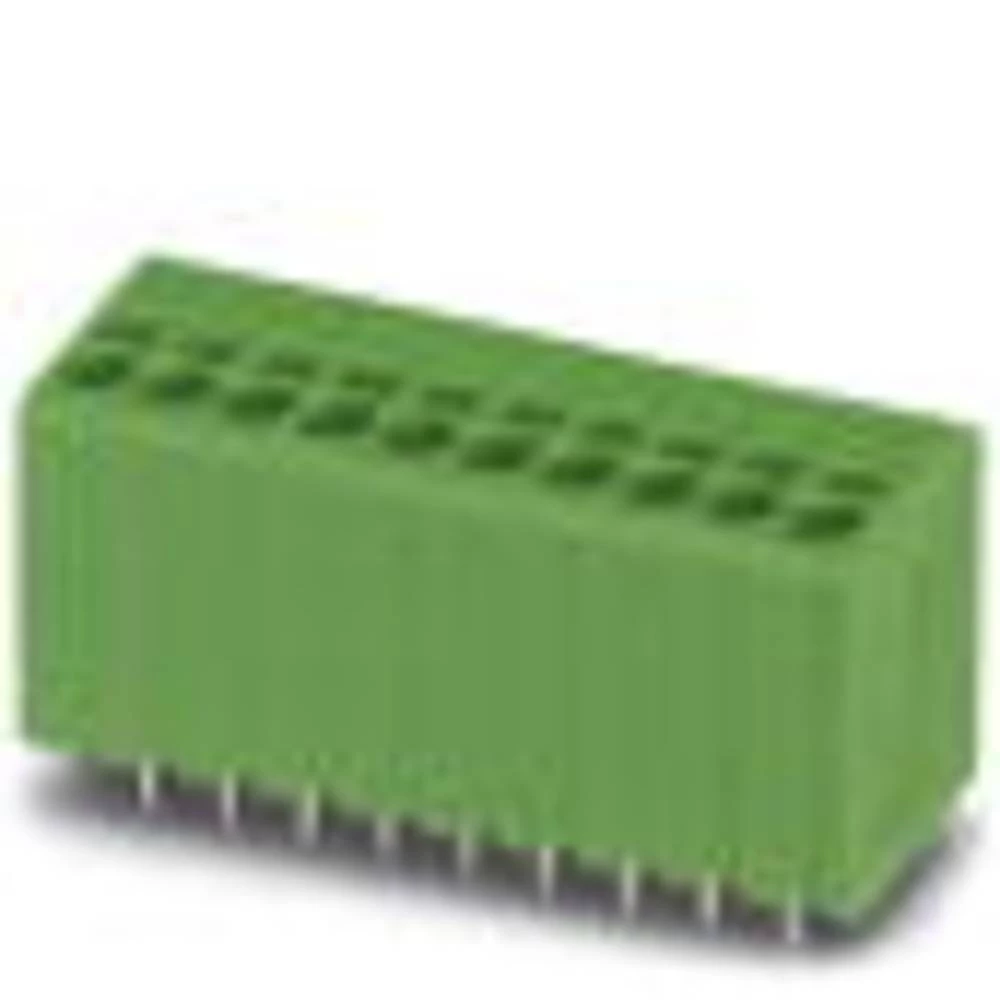

Phoenix Contact SPT 1,5/10-V-3,5 Opružna blok spojka 1.50 mm² Broj polova 10 50 ST

(0)

Rasprodano

Prodaja i slanje od: Architektengruppe S71 d.o.o.

Cijena na upit

0.00 KM

Komada

(0)

Prikaži recenzije

Izdvojeno & Detalji

RM	3.50
Broj polova	10
Serija	SPT
Dužina skidanja izolacije (maks.)	10
Priključak	otisak lem
Nazivna struja	17.50
Poprečni presjek fleksibilni (min.)	0.20
Nazivna struja - zaokružena	17.5
Poprečni presjek kruti (min.)	0.20
Poprečni presjek fleksibilan (maks.)	1.50
Poprečni presjek kruti (maks.)	1.50
Materijal kućišta	pa
Sadržaj	50
Visina	16.90
Dužina	13.50
Širina	36.40
Proizvođač-br. dijela	1990931
Tip	SPT 1,5/10-V-3,5
Nazivni napon	200
Height	16.9
Colour housing	Green
Rated voltage	200
Operating temperature	-40--40
Inflammability class of insulation material according to with UL94	V0
Rated surge voltage	2.5
Over voltage category	III
Pollution degree	2
Length pin	2.5
Material connection surface	Tin
Modular spacing connections	3.5
Type of banding	None
Connectable conductor cross section solid-core	0.2-1.5
Connectable conductor cross section fine-strand with cable end sleeve	0.25-1.5
Connectable conductor cross section fine-strand without cable end sleeve	0.2-1.5
Connectable conductor cross section multi-wired	0.2-1.5
Material insulation body	Thermoplastic
Angle PCB/conductor connection	90° (upwards vertical)
Rated current In	17.5
Number of electrical connections	10
Vrsta proizvoda	opružna blok spojka
