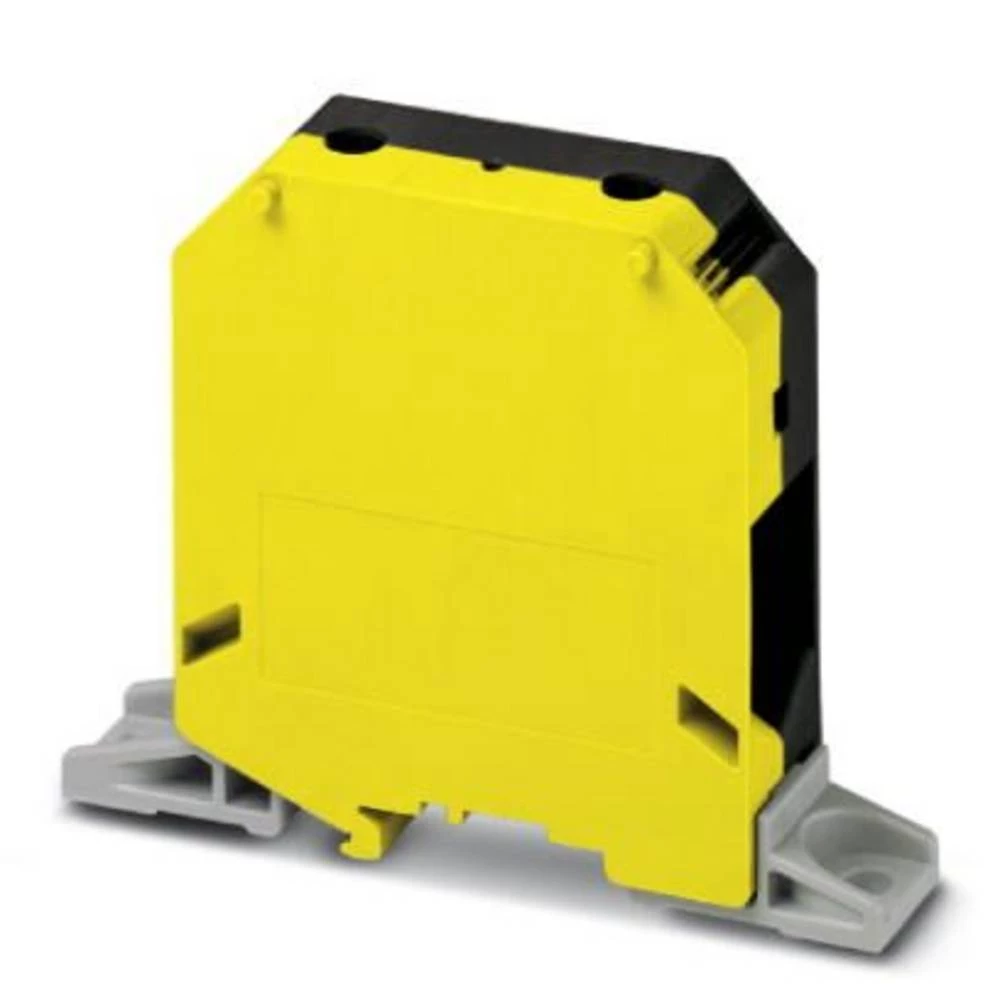

Phoenix Contact UKH 95-FE-F 3247059 visokostrujna stezaljka 35 mm² 95 mm² crna, žuta 1 St.

(0)

Rasprodano

Prodaja i slanje od: Architektengruppe S71 d.o.o.

Cijena na upit

0.00 KM

Komada

(0)

Prikaži recenzije

Izdvojeno & Detalji

Priključak	vijak
Poprečni presjek fleksibilni (min.)	35
Poprečni presjek fleksibilan (maks.)	95
Poprečni presjek kruti (min.)	25
Poprečni presjek kruti (maks.)	95
AWG min.	4
Broj redova	1
Boja	crna žuta
Nazivna struja	232
Nazivna struja - zaokružena	232
Nazivni napon	1000
Dužina skidanja izolacije (maks.)	33
Proizvođač-br. dijela	3247059
Sadržaj	1
Tip	UKH 95-FE-F
dim.	(D x Š x V) 118.8 x 25 x 90 mm
Širina	25
Visina	90
Dužina	118.8
Stupanj onečišćenja	3
Izolacija	Poliamid
Klasa gorivosti	V0
Mounting method	Other
Colour	Other
Rated voltage	1000
Length	118.8
Inflammability class of insulation material according to with UL94	V0
Width/grid dimension	25
Height at lowest possible mounting height	90
Closing plate required	ne
Type of electrical connection 1	Screw connection
Type of electrical connection 2	Screw connection
Number of levels	1
Number of clamp positions per level	2
Internally connected stages	ne
Connectable conductor cross section solid-core	25-95
Connectable conductor cross section fine-strand with cable end sleeve	35-95
Connectable conductor cross section fine-strand without cable end sleeve	35-95
Connectable conductor cross section multi-wired	25-35
Material insulation body	Other
Rated current In	232
Explosion-tested version 'Ex e'	ne
Vrsta proizvoda	visokostrujna stezaljka
