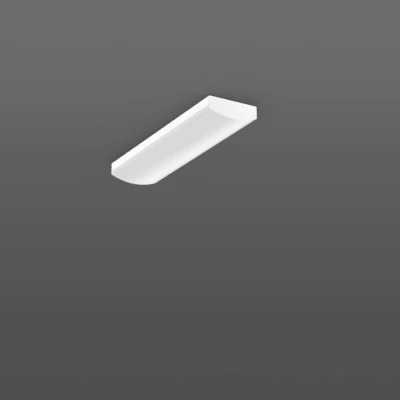

RZB 312624.002.1 LED zidna svjetiljka

Kataloški br:: 2977763 - 62
Oznaka:: 312624.002.1
EAN:: 4051859765769

(0)

Kataloški br:: 2977763 - 62
Oznaka:: 312624.002.1
EAN:: 4051859765769

Dostupno online (Skladište: Njemačka)

Dostava: 15.07.2025 do 17.07.2025

Prodaja i slanje od: Architektengruppe S71 d.o.o.

645.00 KM

sa PDV Troškovi dostave

Komada

(0)

Prikaži recenzije

RZB

Tehničke specifikacije

Klasa energetske učinkovitosti	n.rel. (EENRPS00)
Protection class according to IEC 61140	I
Width	160 mm
Lamp holder	Other
Conductor cross section	2.50 mm²
Connection type	Push-in clamp
Housing colour	White
Voltage type	AC
With movement sensor	FALSE
Suitable for lamp power	10-17 W
Type of grid	None
Type of control gear	LED operating device current-controlled
Colour rendering index CRI	80-89
With light sensor	FALSE
Suitable for suspended mounting	FALSE
Number of poles	3
Length	600 mm
Height/depth	58 mm
Housing material	Steel
Lamp type	LED not exchangeable
Suitable for light line configuration	FALSE
Suitable for emergency lighting	FALSE
Light outlet	Direct
Light distribution	Symmetric
Material cover	Plastic, opal
Impact strength	IK05
Nominal voltage	220-240 V
Emergency power supply integrated	FALSE
Degree of protection (IP)	IP54
With light source	TRUE
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24	TRUE
Suitable for number of light sources	2
Suitable for wall mounting	TRUE
Suitable for built-in mounting	FALSE
With control gear	TRUE
Suitable for workplace according to EN 12464-1	FALSE
Suitable for surface mounting	TRUE
Beam angle	Open beam/diffuse
Nominal current	71-77 mA
Colour temperature	4000-4000 K
Max. system power	17 W
Colour of light	White
With air slots	FALSE
Constant light output (CLO)	FALSE
IFTTT support available	FALSE
Type of wiring	Suitable for loop-through wiring
Rated life time L80/B10 at 25 °C	50000 h
Colour consistency (McAdam ellipse)	SDCM3
Total harmonic distortion	0.15
Photobiological safety according to EN 62471	RG1
Degree of protection (NEMA)	Other
Rated ambient temperature according to IEC 62722-2-1	-25-35 °C
Filament test according to IEC 60695-2-11	650 °C - 30 s
Dimming 0-10 V	FALSE
Dimming 1-10 V	FALSE
Dimming DALI	FALSE
Dimming DMX	FALSE
Dimming potentiometer (integrated)	FALSE
Dimming GPRS	FALSE
Dimming LineSwitch	FALSE
Dimming manufacturer's proprietary system	FALSE
Dimming mains voltage modulation	FALSE
Dimming phase cut-off (trailing edge)	FALSE
Dimming phase cut-on (leading edge)	FALSE
Dimming programmable	FALSE
Dimming RF	FALSE
Dimming Sine Wave Reduction	FALSE
Dimming Touch and Dim	FALSE
Dimming Zigbee	FALSE
Dimming with push-button	FALSE
No dim function	TRUE
Light distributor	None
Dimming depending on control gear	FALSE
Dimming DSI	FALSE
Unified Glare Ratio (UGR)	21.60
Operation by Bluetooth	FALSE
Compatible with Apple HomeKit	FALSE
Compatible with Google Assistant	FALSE
Compatible with Amazon Alexa	FALSE
Max. number of luminaires per miniature circuit breaker C16 (MCB)	112
Max. number of luminaires per miniature circuit breaker B16 (MCB)	72
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)	80 %
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)	10 %
Dimming DALI-2	FALSE
Flickering value Pst LM	5
Colour of light adjustable	No
Luminous flux adjustable	Positions
Exchangeable control gear	TRUE
Suitable for ceiling mounting	TRUE
Surface protection housing	Powder coating
Power factor	0.96
Vrsta proizvoda	LED zidna svjetiljka

Opis

Atraktivna i vrlo učinkovita difuzorska rasvjeta za korištenje čak i uz povećane zahtjeve. Kućište i čepovi izrađeni od čeličnog lima presvučenog prahom. Završne kapice bez vidljivih vijaka, s izdržljivom brtvom od silikonske pjene. Zakrivljeni difuzor od plastike koja ne žuti (PMMA) opal. Posebno usklađen 2-komponentni optički sustav za homogeno i meko osvjetljenje cijele površine koja emitira svjetlost. Pogodan za stropnu montažu, zidnu montažu. Integrirani operativni uređaj. Prikladno za prolazno ožičenje. MultiLumen: Svjetlosni tok svjetiljke može se podesiti u 4 razine. Na zahtjev sa senzorima ili kao sigurnosno svjetlo. Svjetiljke s ograničenom površinskom temperaturom prema DIN EN 60598-2-24 za uporabu u okruženju u kojem se može očekivati taloženje nevodljive prašine na svjetiljki. Odobreno za upotrebu u industriji hrane i pića. Ekološki prihvatljiv i štedi resurse zahvaljujući zamjenjivim komponentama. Nije jednosmjerno svjetlo.
