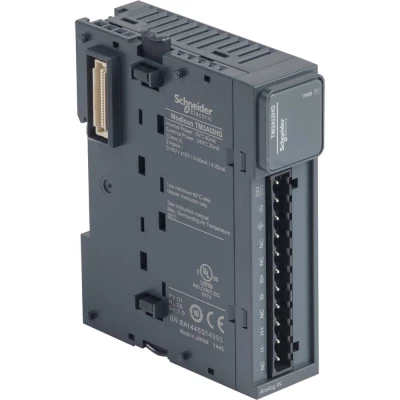

Schneider Electric TM3AI2HG modul za proširenje

(0)

Rok isporuke na upit

Prodaja i slanje od: Architektengruppe S71 d.o.o.

Cijena na upit

0.00 KM

Komada

(0)

Prikaži recenzije

Tehničke specifikacije

Tip	TM3AI2HG
Proizvođač-br. dijela	TM3AI2HG
Width	23.6
Height	90 mm
Depth	70 mm
Suitable for safety functions	FALSE
Number of analogue inputs	2
Number of analogue outputs	0
Input, current	TRUE
Input, voltage	TRUE
Input, resistor	FALSE
Input, resistance thermometer	FALSE
Input, thermocouple	FALSE
Input signal, configurable	FALSE
Output, current	FALSE
Output, voltage	FALSE
Output signal configurable	FALSE
Resolution of the analogue inputs	16 Bit
Resolution of the analogue outputs	12 Bit
Type of electric connection	Spring clamp connection
Explosion safety category for gas	None
Explosion safety category for dust	None
Appendant operation agent (Ex ia)	FALSE
Appendant operation agent (Ex ib)	FALSE
Performance level according to EN ISO 13849-1	None
Analogue inputs configurable	FALSE
Analogue outputs configurable	FALSE
SIL according to IEC 61508	None
Vrsta proizvoda	modul za proširenje
