Vremenski releji, višefunkcijski releji

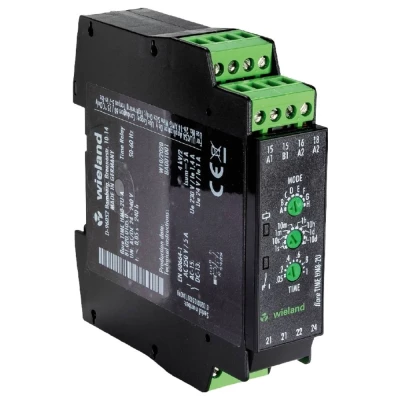

Wieland Electric 81.020.0105.0 FLARE TIME HM8-2U-A vremenski relej 1 St.

Kataloški br:: 3275142 - 62

(0)

Kataloški br:: 3275142 - 62

Dostupno online (Skladište: Njemačka)

Dostava: 14.07.2025 do 16.07.2025

Prodaja i slanje od: Architektengruppe S71 d.o.o.

480.00 KM

sa PDV Troškovi dostave

Komada

(0)

Prikaži recenzije

Tehničke specifikacije

Tip	FLARE TIME HM8-2U-A
Širina	22.5 mm
Visina	96.5 mm
dim.	(Š x V) 22.5 mm x 96.5 mm
Sadržaj	1 St.
Width	22.5
Height	96.5 mm
Depth	91.5 mm
Remote operation possible	FALSE
Suitable as remote control	FALSE
Function flashing, starting with pause, fixed time	FALSE
Function flashing, starting with pulse, fixed time	FALSE
Clock function, starting with pause, variable	FALSE
Clock function, starting with pulse, variable	FALSE
With semiconductor output	FALSE
Function delay-on energization	TRUE
Function floating contact on energization	TRUE
Function star-delta	FALSE
Function delay on de-energization	TRUE
Function floating contact on de-energization	TRUE
Function pulse shaping	TRUE
Type of electric connection	Screw connection
Rated control supply voltage AC 50 Hz	24-240 V
Rated control supply voltage AC 60 Hz	24-240 V
Rated control supply voltage DC	24-240 V
Voltage type for actuating	AC/DC
Vrsta proizvoda	vremenski relej

Opis

baklja VRIJEME HM8-2U-A
Višenamjenski relej
8 funkcija
8 vremenskih raspona
Vremenski raspon 0.05s..240h
1 mjenjač vremena i 1 instant
AC/DC 24-240V 50-60Hz; Š x V x D: 22,5 × 96,5 × 91,5 mm

Ovaj tekst je strojno preveden.
