Audio, video kabeli, nekonfekcionirani

Computronic C11 Modulationskabel analogni 2 x 2 x 0.15 mm crni metražna roba Kab

Kataloški br:: 486015 - 62
Oznaka:: 830401500
EAN:: 2050001704856

(0)

Kataloški br:: 486015 - 62
Oznaka:: 830401500
EAN:: 2050001704856

Rasprodano

Prodaja i slanje od: Architektengruppe S71 d.o.o.

Cijena na upit

0.00 KM

sa PDV Troškovi dostave

Komada

(0)

Prikaži recenzije

Varijante

Tehničke specifikacije

Capacity (pF/m): 80 c/c; 140 c/s
Testing voltage: 250V c/c; 1.000V c/s
Cross-talk attenuation: 0,3 MHz - approx. 85 db/100m 1,0 MHz - approx. 80 db/100m 3,0 MHz - approx. 76 db/100m 10,0 MHz - approx. 71 db/100m
Attenuation: 0,3 MHz: approx. 2,0 db/100m 1,0 MHz: approx. 2,8 db/100m 3,0 MHz: approx. 7,8 db/100m 10,0 MHz: approx. 19,3 db/100m
Characteristic impedance: 0,3 MHz: 90 Ohm +/-10% 1,0 MHz: 90 Ohm +/-10% 3,0 MHz: 85 Ohm +/-10% 10,0 MHz: 85 Ohm +/-10%
Temperature range: static: -40°C to +90°C dynamic: -30°C to +80°C
Bending radius: min. 10 x O.D.

zaštićeno	Da
zapakirano	Ne
roba na metre	Da
sadržaj	Roba na metre
boja	Crna
bez halogena	Da
proizvođač-br. dijela	830401500
duljina kabla (tekst)	Meterware

Opis

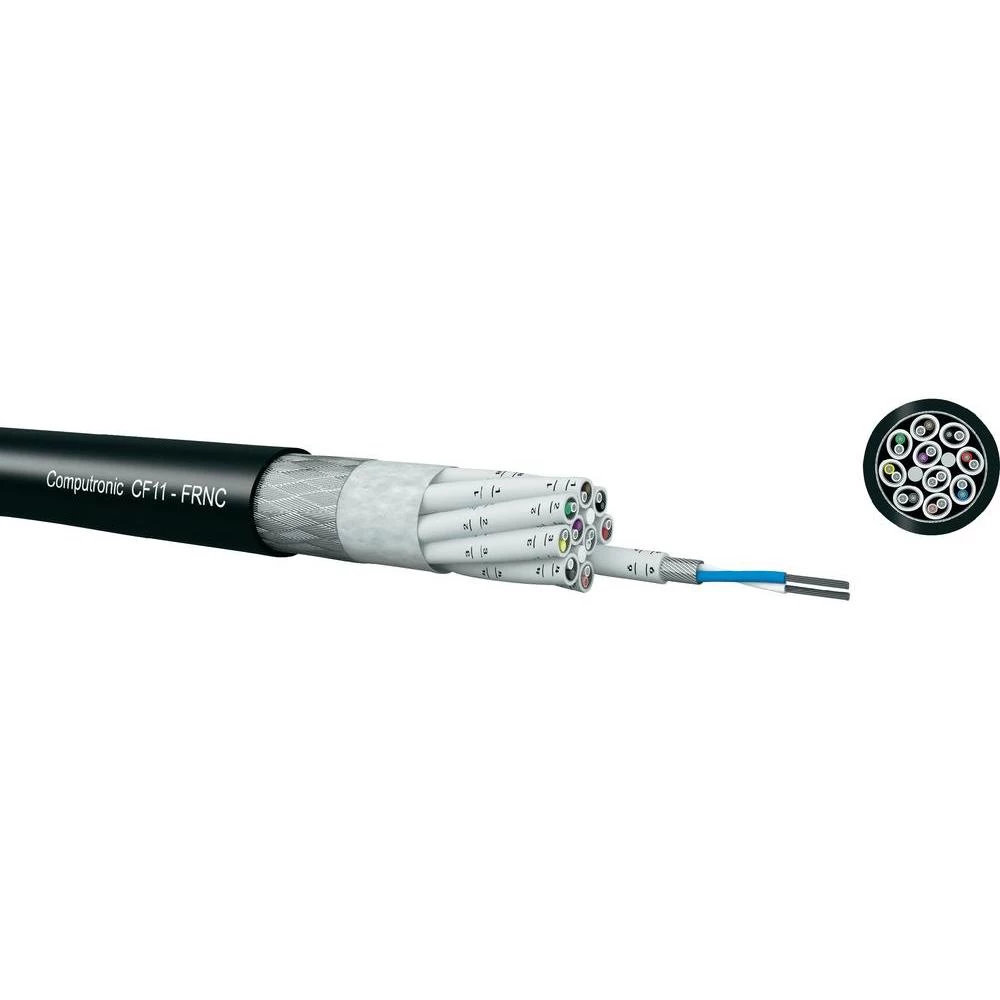

Conductor: tinned stranded copper wire · Structure of conductor: 19x0,10mm · Core insulation: PE · Core code: white-black · Pair shield: tinned copper spiral shield · Pair jacket: PETE, numbered · Total shield: tinned copper braid · Jacket: PUR, no halogen, matt black
