LAPP 00123663/500 priključni vod 5 x 2.5 mm² 500 m

(0)

Dostupno online (Skladište: Njemačka)

Dostava: 13.07.2025 do 15.07.2025

Prodaja i slanje od: Architektengruppe S71 d.o.o.

15,800.00 KM

Komada

(0)

Prikaži recenzije

Tehničke specifikacije

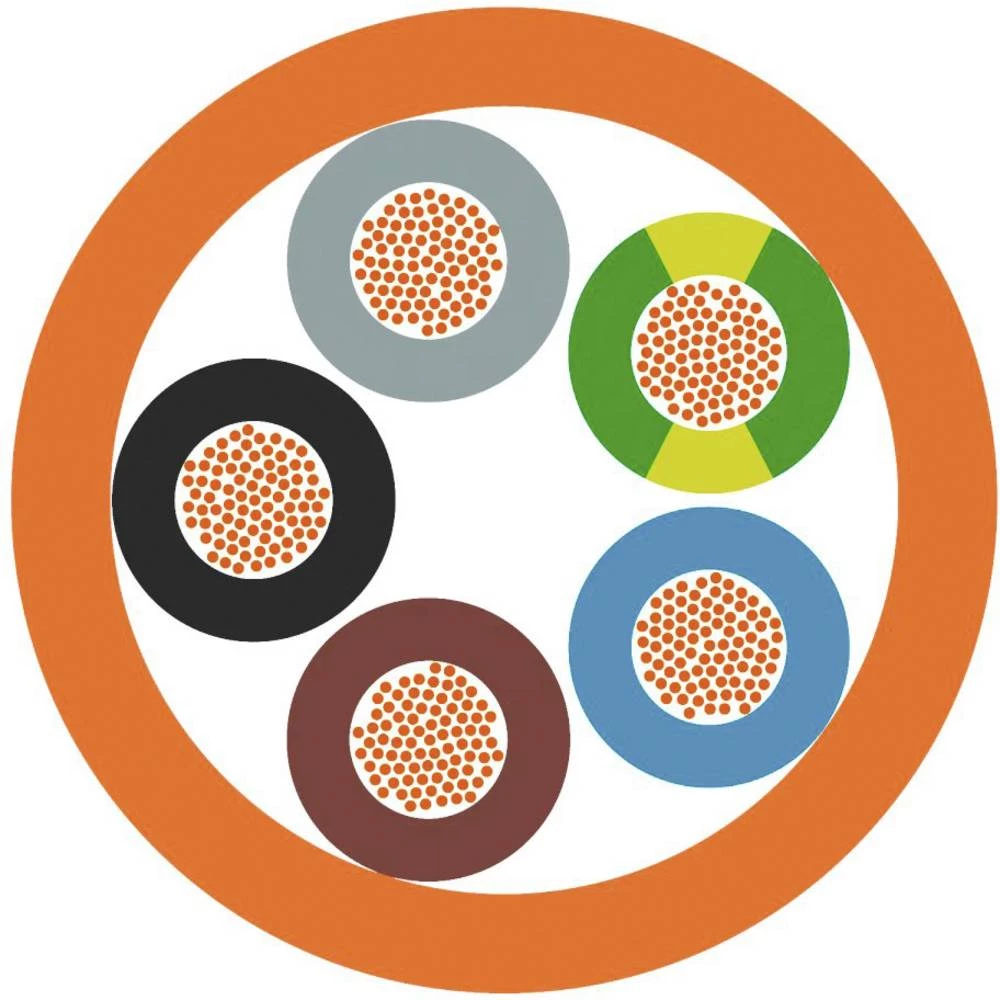

Broj žica	5 x
Poprečni presjek (po žili)	2.5 mm²
Presjek	5 x 2.5 mm²
Vanjski Ø	12.8 mm
Sadržaj	500 m
Nazivni napon	500 V
Nazivni napon U0	300 V
Proizvođač-br. dijela	00123663/500
Tip	ÖLFLEX® 500 P 5G2,5
Nominal cross section conductor	2.5 mm²
Material core insulation	Other
Core identification	Colour
Flame retardant	According to IEC/EN 60332-1-2
Nominal voltage U	500 V
Colour outer sheath	Orange
Conductor material	Copper
Material outer sheath	Polyurethane (PUR)
Conductor category	Class 6 = very flexible
Permitted cable outer temperature after assembling without vibration	-50-80 °C
Nominal voltage U0	300 V
Number of cores	5
Outer diameter approximate	12.8 mm
With protective conductor	TRUE
Low smoke (according to EN 61034-2)	FALSE
Halogen free according to EN 60754-1/2	FALSE
Oil resistant according to EN IEC 60811-404	FALSE
Conductor surface	Bare
Min. permitted bending radius, moving application/free movement	128.0 mm
Min. permitted bending radius, stationary application/permanent installation	51.2 mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Core identification according to HD 308 S2	TRUE
Vrsta proizvoda	priključni vod
