LAPP 0022421/305 vod za prijenos podataka UNITRONIC® LiYY 305 m

(0)

Dostupno online (Skladište: Njemačka)

Dostava: 17.07.2025 do 19.07.2025

Prodaja i slanje od: Architektengruppe S71 d.o.o.

-27 %

1,905.70 KM2,600.00 KM

Štedite 694.30 KM

Komada

(0)

Prikaži recenzije

Tehničke specifikacije

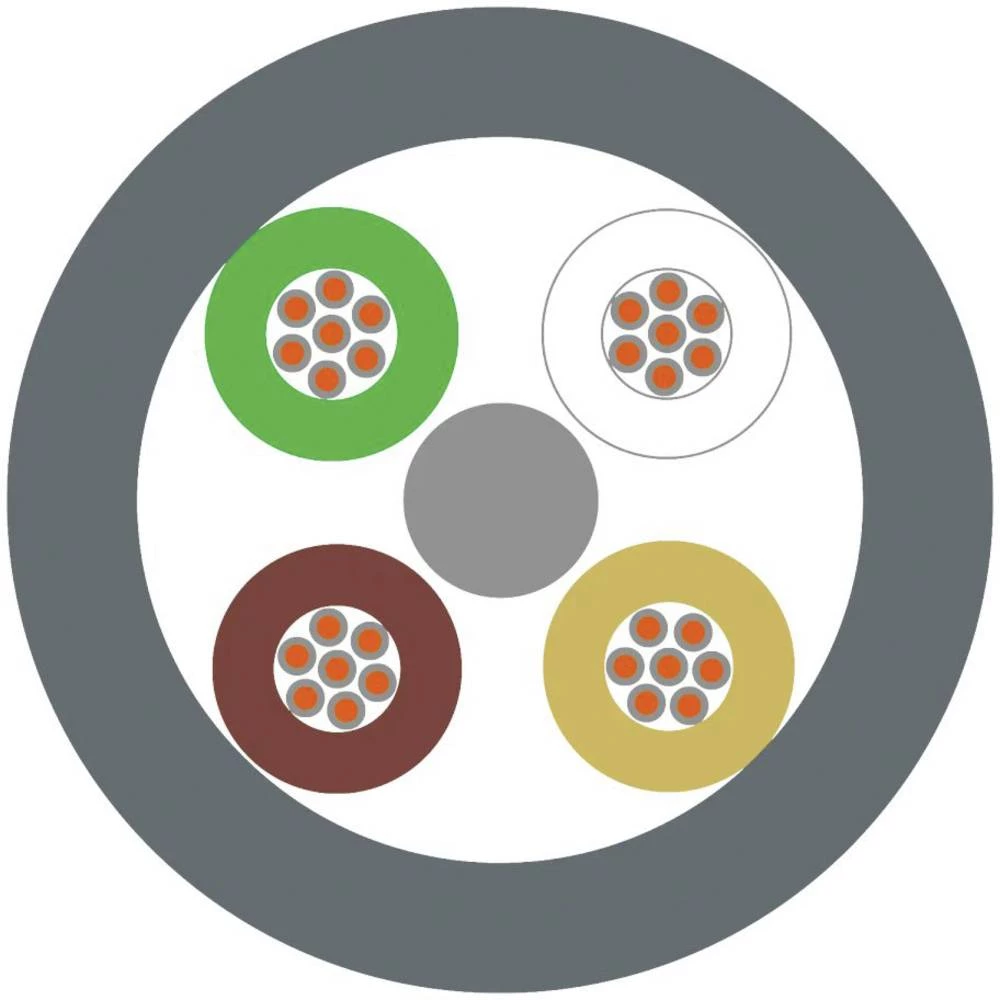

Tip kabela	UNITRONIC® LiYY
Broj žica	21 x
Vanjski Ø	7 mm
Sadržaj	305 m
Bez halogena	ne
Proizvođač-br. dijela	0022421/305
Izolacijski material	polivinilhlorid
Raspon temperature, fiksna instalacija (min.)	-40 °C
Raspon temperature, fiksna instalacija (maks.)	80 °C
Tip	UNITRONIC® LiYY A 21X26AWG/7
UV resistant	FALSE
Nominal cross section conductor	0.14 mm²
Material core insulation	Polyvinyl chloride (PVC)
Core identification	Colour
Colour outer sheath	Other
Conductor material	Copper
Material outer sheath	Polyvinyl chloride (PVC)
Permitted cable outer temperature after assembling without vibration	-40-80 °C
Number of cores	21
Halogen free according to EN IEC 60754-2	FALSE
Low smoke according to EN IEC 61034-2	FALSE
Outer diameter approximate	7 mm
Low smoke (according to EN 61034-2)	FALSE
Conductor surface	Tinned
AWG size	Other
Min. permitted bending radius, moving application/free movement	105.0 mm
Min. permitted bending radius, stationary application/permanent installation	28.0 mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Core identification according to HD 308 S2	FALSE
Vrsta proizvoda	vod za prijenos podataka
