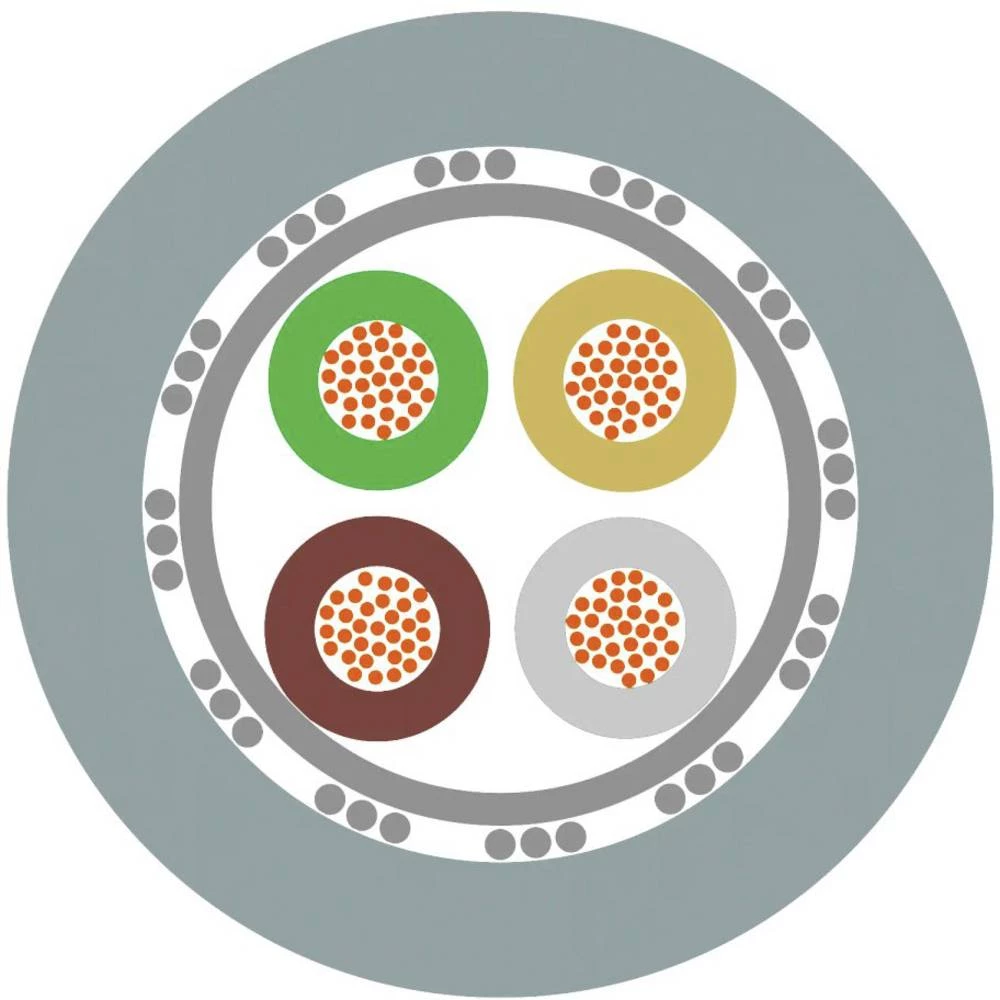

LAPP 0027442/1000 vod za prijenos podataka UNITRONIC® FD CY siva 1000 m
- Kataloški br:
- 3351249 - 62
- Oznaka:
- 0027442/1000
- EAN:
- 4044777024667
- Kataloški br:
- 3351249 - 62
- Oznaka:
- 0027442/1000
- EAN:
- 4044777024667
LAPP 0027442/1000 vod za prijenos podataka UNITRONIC® FD CY siva 1000 m
27 %
7,428.30 KM10,160.00 KM
Štedite 2,731.70 KM
Komada
Prodaja i slanje od:
Architektengruppe S71 d.o.o.
-27 %
7,428.30 KM10,160.00 KM
Štedite 2,731.70 KM
sa PDV
Troškovi dostave
Komada
Tehničke specifikacije
Tehničke specifikacije
| Tip kabela | UNITRONIC® FD CY |
| Broj žica | 4 x |
| Vanjski Ø | 6 mm |
| Boja | siva |
| Sadržaj | 1000 m |
| Bez halogena | ne |
| Proizvođač-br. dijela | 0027442/1000 |
| Izolacijski material | polivinilhlorid |
| Raspon temperature, fiksna instalacija (min.) | -40 °C |
| Raspon temperature, fiksna instalacija (maks.) | 80 °C |
| Tip | UNITRONIC® FD CY 4x0,34 |
| UV resistant | FALSE |
| Nominal cross section conductor | 0.34 mm² |
| Material core insulation | Polyvinyl chloride (PVC) |
| Core identification | Colour |
| Flame retardant | According to IEC/EN 60332-1-2 |
| Colour outer sheath | Grey |
| Conductor material | Copper |
| Material outer sheath | Polyvinyl chloride (PVC) |
| Permitted cable outer temperature after assembling without vibration | -40-80 °C |
| Number of cores | 4 |
| Halogen free according to EN IEC 60754-2 | FALSE |
| Low smoke according to EN IEC 61034-2 | FALSE |
| Outer diameter approximate | 6 mm |
| Low smoke (according to EN 61034-2) | FALSE |
| Conductor surface | Bare |
| Min. permitted bending radius, stationary application/permanent installation | 24.0 mm |
| Specification core insulation | Other |
| Specification material outer sheath | Other |
| Cable geometry | Round |
| Core identification according to HD 308 S2 | FALSE |
| Vrsta proizvoda | vod za prijenos podataka |
