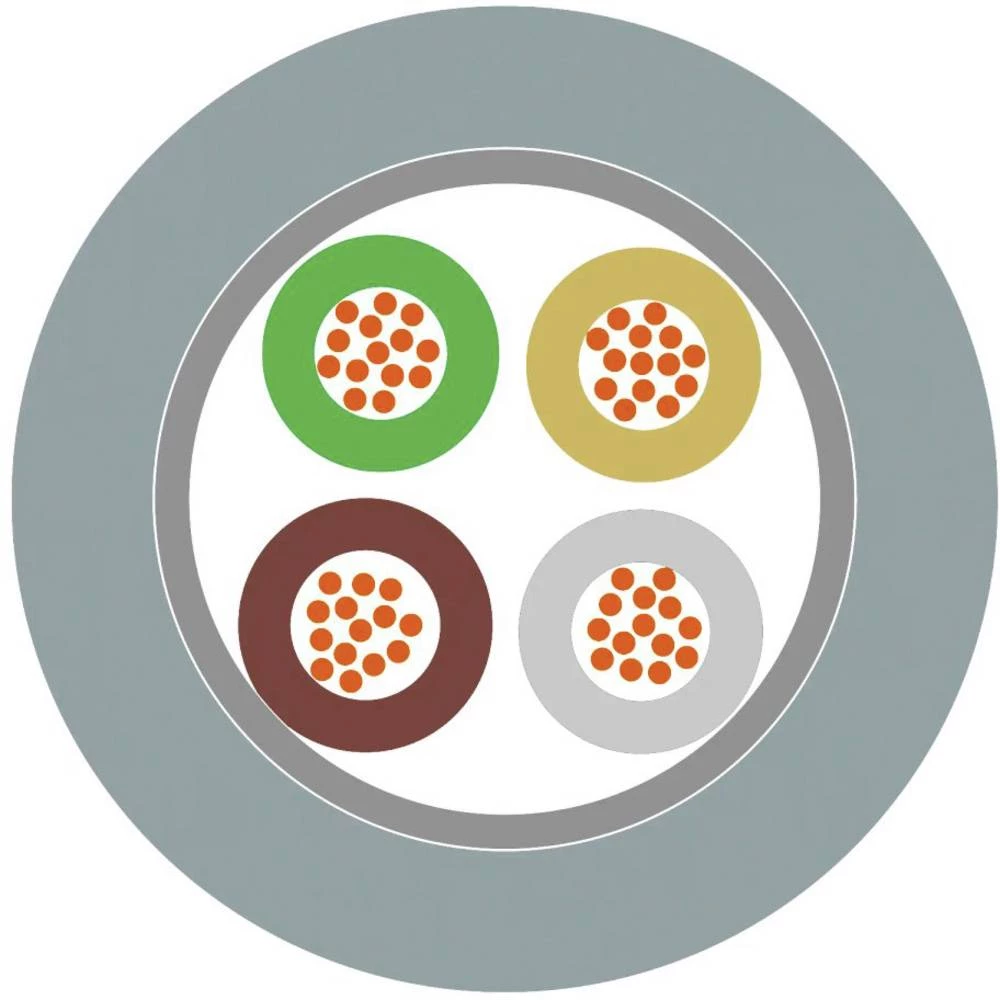

LAPP 0028661/100 podatkovni kabel UNITRONIC® FD P plus A siva 100 m
- Kataloški br:
- 3357228 - 62
- Oznaka:
- 0028661/100
- EAN:
- 4044774904351
- Kataloški br:
- 3357228 - 62
- Oznaka:
- 0028661/100
- EAN:
- 4044774904351
LAPP 0028661/100 podatkovni kabel UNITRONIC® FD P plus A siva 100 m

28 %
611.90 KM850.00 KM
Štedite 238.10 KM
Komada
Prodaja i slanje od:
Architektengruppe S71 d.o.o.
-28 %
611.90 KM850.00 KM
Štedite 238.10 KM
sa PDV
Troškovi dostave
Komada

Tehničke specifikacije
Tehničke specifikacije
Tip kabela | UNITRONIC® FD P plus A |
Broj žica | 5 x |
Vanjski Ø | 5 mm |
Boja | siva |
Sadržaj | 100 m |
Bez halogena | ne |
Proizvođač-br. dijela | 0028661/100 |
Izolacijski material | poliuretan |
Raspon temperature, fiksna instalacija (min.) | -40 °C |
Raspon temperature, fiksna instalacija (maks.) | 80 °C |
Tip | UNITRONIC® FD P plus A 5X0,25 |
UV resistant | TRUE |
Nominal cross section conductor | 0.25 mm² |
Material core insulation | Polyolefin |
Core identification | Colour |
Colour outer sheath | Grey |
Conductor material | Copper |
Material outer sheath | Polyurethane (PUR) |
Permitted cable outer temperature after assembling without vibration | -40-80 °C |
Number of cores | 5 |
Halogen free according to EN IEC 60754-2 | FALSE |
Low smoke according to EN IEC 61034-2 | FALSE |
Outer diameter approximate | 5 mm |
Low smoke (according to EN 61034-2) | FALSE |
Halogen free according to EN 60754-1/2 | FALSE |
Oil resistant according to EN IEC 60811-404 | FALSE |
Conductor surface | Bare |
AWG size | Other |
Min. permitted bending radius, moving application with forced guidance | 25.0 mm |
Min. permitted bending radius, moving application/free movement | 25.0 mm |
Min. permitted bending radius, stationary application/permanent installation | 15.0 mm |
Specification core insulation | Other |
Specification material outer sheath | Other |
Cable geometry | Round |
Core identification according to HD 308 S2 | FALSE |
Vrsta proizvoda | podatkovni kabel |
