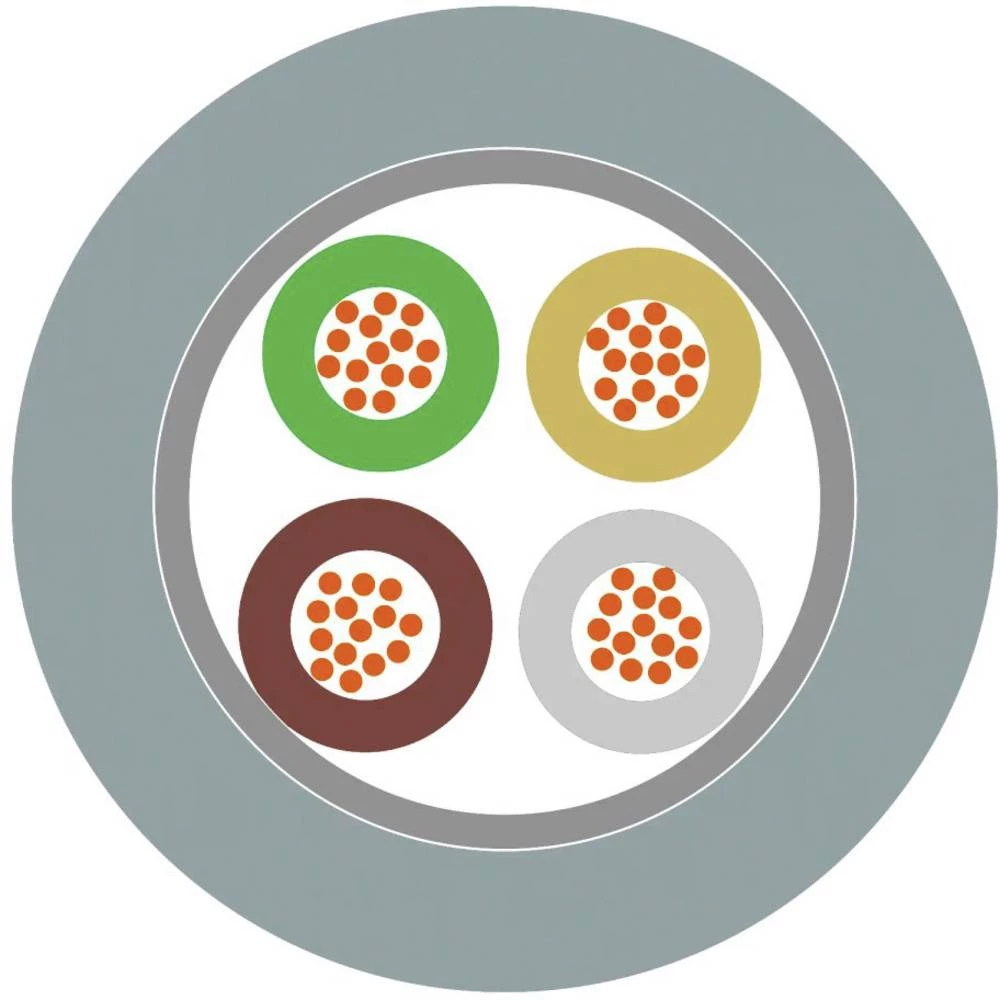

LAPP 0028679/1000 vod za prijenos podataka UNITRONIC® FD P plus A siva 1000 m

(0)

Dostupno online (Skladište: Njemačka)

Dostava: 17.07.2025 do 19.07.2025

Prodaja i slanje od: Architektengruppe S71 d.o.o.

-28 %

7,664.60 KM10,575.00 KM

Štedite 2,910.40 KM

Komada

(0)

Prikaži recenzije

Tehničke specifikacije

Tip kabela	UNITRONIC® FD P plus A
Broj žica	6 x
Vanjski Ø	5 mm
Boja	siva
Sadržaj	1000 m
Bez halogena	ne
Proizvođač-br. dijela	0028679/1000
Izolacijski material	poliuretan
Raspon temperature, fiksna instalacija (min.)	-40 °C
Raspon temperature, fiksna instalacija (maks.)	80 °C
Tip	UNITRONIC® FD P plus A 6x0,25
UV resistant	TRUE
Nominal cross section conductor	0.25 mm²
Material core insulation	Polyolefin
Core identification	Colour
Colour outer sheath	Grey
Conductor material	Copper
Material outer sheath	Polyurethane (PUR)
Permitted cable outer temperature after assembling without vibration	-40-80 °C
Number of cores	6
Halogen free according to EN IEC 60754-2	FALSE
Low smoke according to EN IEC 61034-2	FALSE
Outer diameter approximate	5.4 mm
Low smoke (according to EN 61034-2)	FALSE
Halogen free according to EN 60754-1/2	FALSE
Oil resistant according to EN IEC 60811-404	FALSE
Conductor surface	Bare
AWG size	Other
Min. permitted bending radius, moving application with forced guidance	27.0 mm
Min. permitted bending radius, moving application/free movement	27.0 mm
Min. permitted bending radius, stationary application/permanent installation	16.2 mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Core identification according to HD 308 S2	FALSE
Vrsta proizvoda	vod za prijenos podataka
