LAPP 1123817/500 jakostrujni kabel 500 m

(0)

Rasprodano

Prodaja i slanje od: Architektengruppe S71 d.o.o.

49,095.00 KM

Komada

(0)

Prikaži recenzije

Tehničke specifikacije

Vrsta proizvoda	jakostrujni kabel
Vanjski Ø	22.4 mm
Sadržaj	500 m
Nazivni napon	1000 V
Nazivni napon U0	600 V
Proizvođač-br. dijela	1123817/500

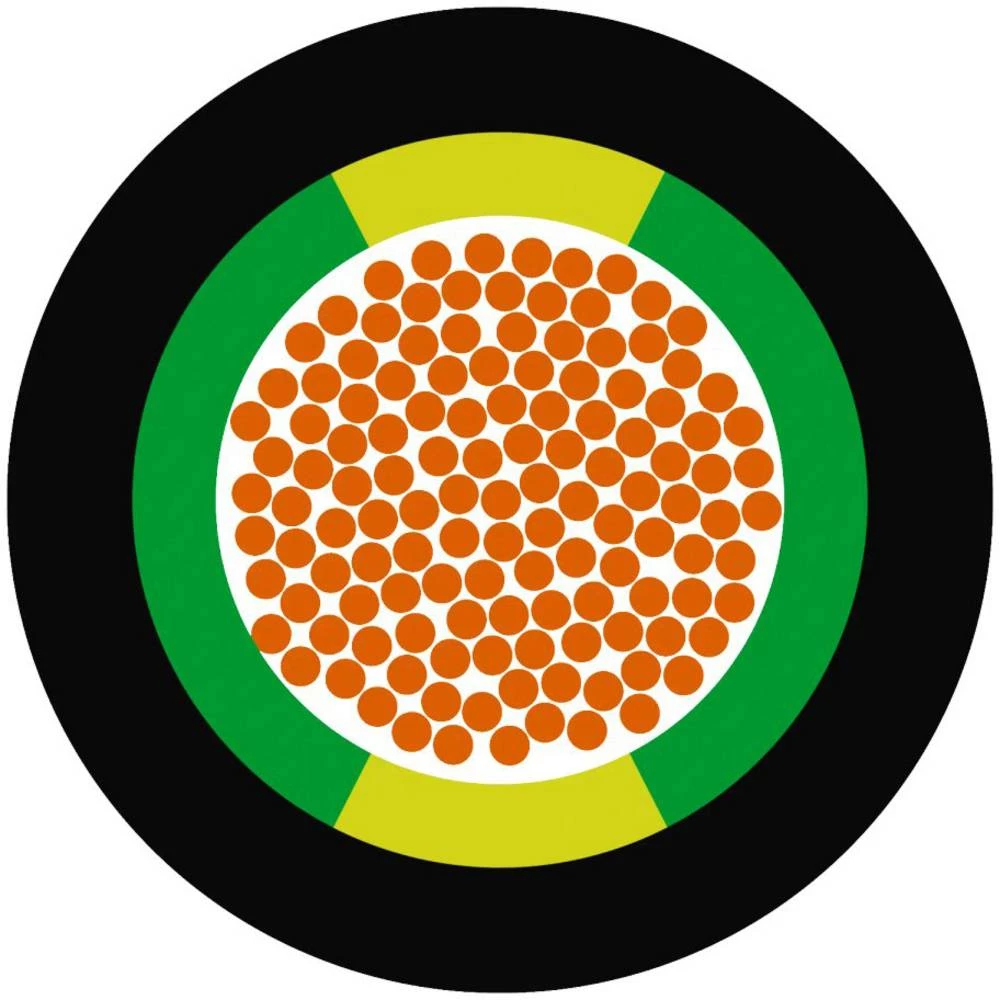

Tip	ÖLFLEX® CLASSIC 128 H BK SC 1X120 GN/YE
Material core insulation	Other
Nominal voltage U	1 kV
Colour outer sheath	Black
Material outer sheath	Other
Permitted cable outer temperature after assembling without vibration	-40-80 °C
Number of main cores	1
Nominal voltage U0	0.6 kV
Outer diameter approximate	22.4 mm
With protective conductor	TRUE
Min. permitted bending radius, moving application/free movement	336.0 mm
Min. permitted bending radius, stationary application/permanent installation	89.6 mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
