LAPP 2170592/1000 mrežni kabel ETHERLINE® zelena 1000 m
- Kataloški br:
- 3350800 - 62
- Oznaka:
- 2170592/1000
- EAN:
- 4044777942220
- Kataloški br:
- 3350800 - 62
- Oznaka:
- 2170592/1000
- EAN:
- 4044777942220
LAPP 2170592/1000 mrežni kabel ETHERLINE® zelena 1000 m

22,630.00 KM
Komada
Prodaja i slanje od:
Architektengruppe S71 d.o.o.
22,630.00 KM
sa PDV
Troškovi dostave
Komada

Tehničke specifikacije
Tehničke specifikacije
Tip kabela | ETHERLINE® |
Broj žica | 8 x |
Vanjski Ø | 8 mm |
Boja | zelena |
Sadržaj | 1000 m |
Bez halogena | ne |
Proizvođač-br. dijela | 2170592/1000 |
Izolacijski material | poliuretan |
Tip | ETHERLINE® Cat. 6A P FD FC |
UV resistant | TRUE |
Material core insulation | Polyolefin |
Core identification | Colour |
Colour outer sheath | Green |
Conductor material | Copper |
Material outer sheath | Polyurethane (PUR) |
Number of cores | 8 |
Outer diameter approximate | 8.8 mm |
Halogen free according to EN 60754-1/2 | FALSE |
Conductor surface | Tinned |
AWG size | Other |
Min. permitted bending radius, moving application with forced guidance | 132.0 mm |
Min. permitted bending radius, stationary application/permanent installation | 35.2 mm |
Specification core insulation | Other |
Specification material outer sheath | Other |
Cable geometry | Round |
Vrsta proizvoda | mrežni kabel |
Opis
Opis

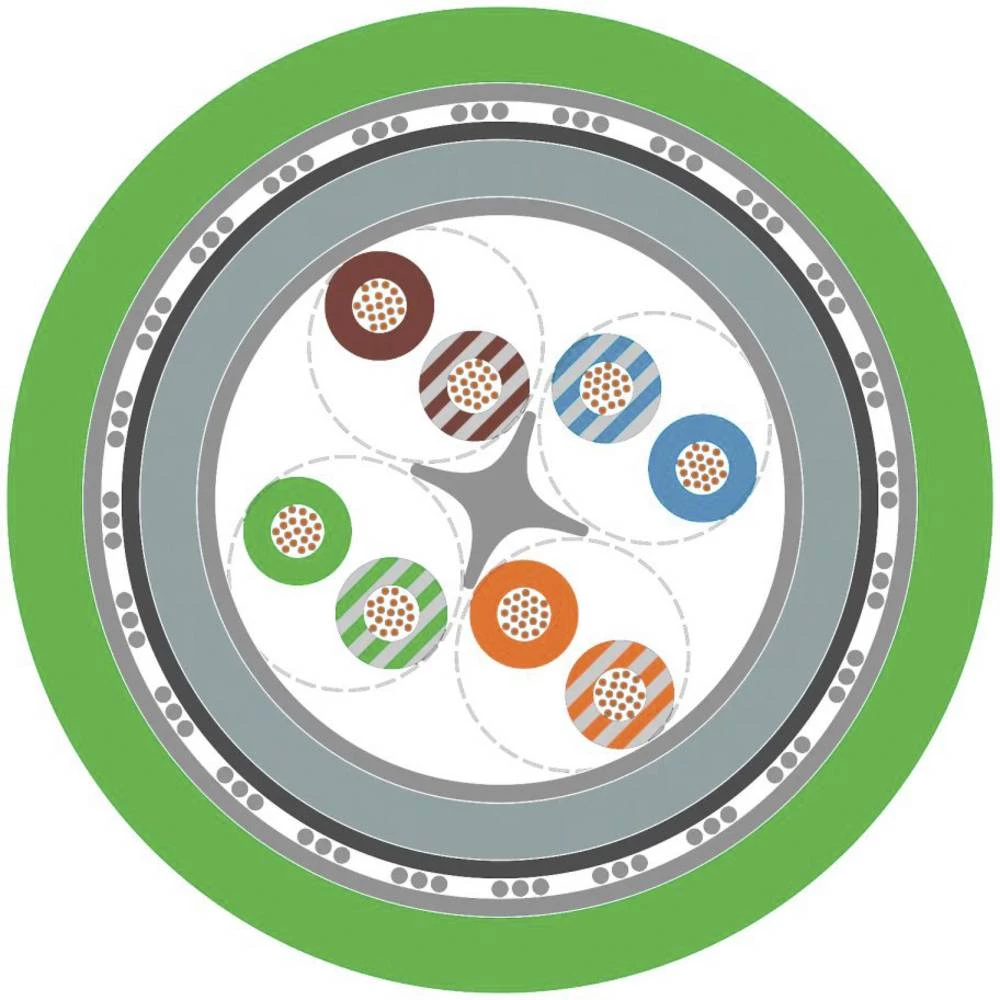

ETHERLINE® Kat. 6A P FD FC Ethernet kabel; vučni lanac; Ethernet, ETHERNET/IP, EtherCAT; Cat.6A; SF/UTP; ČISTA; Bez halogena; zelena
Ovaj tekst je strojno preveden.
Ovaj tekst je strojno preveden.
