LAPP 2170605/1000 mrežni kabel ETHERLINE® PN zelena 1000 m

Kataloški br:: 3350904 - 62
Oznaka:: 2170605/1000
EAN:: 4044778415709

(0)

Kataloški br:: 3350904 - 62
Oznaka:: 2170605/1000
EAN:: 4044778415709

Dostupno online (Skladište: Njemačka)

Dostava: 17.07.2025 do 19.07.2025

Prodaja i slanje od: Architektengruppe S71 d.o.o.

-28 %

9,985.00 KM13,775.00 KM

Štedite 3,790.00 KM

sa PDV Troškovi dostave

Komada

(0)

Prikaži recenzije

Tehničke specifikacije

Tip kabela	ETHERLINE® PN
Broj žica	8 x
Vanjski Ø	8 mm
Boja	zelena
Sadržaj	1000 m
Bez halogena	ne
Proizvođač-br. dijela	2170605/1000
Izolacijski material	polivinilhlorid
Raspon temperature, fiksna instalacija (min.)	-30 °C
Raspon temperature, fiksna instalacija (maks.)	80 °C
Tip	ETHERLINE® PN CAT.7 Y A
UV resistant	TRUE
Nominal cross section conductor	0.25 mm²
Material core insulation	Other
Core identification	Colour
Colour outer sheath	Green
Conductor material	Copper
Material outer sheath	Polyvinyl chloride (PVC)
Permitted cable outer temperature after assembling without vibration	-30-80 °C
Number of cores	8
Halogen free according to EN IEC 60754-2	FALSE
Low smoke according to EN IEC 61034-2	FALSE
Outer diameter approximate	8.1 mm
Low smoke (according to EN 61034-2)	FALSE
Conductor surface	Bare
AWG size	Other
Min. permitted bending radius, moving application/free movement	67.2 mm
Min. permitted bending radius, stationary application/permanent installation	64.8 mm
Specification core insulation	Other
Specification material outer sheath	Other
Cable geometry	Round
Core identification according to HD 308 S2	FALSE
Vrsta proizvoda	mrežni kabel

Opis

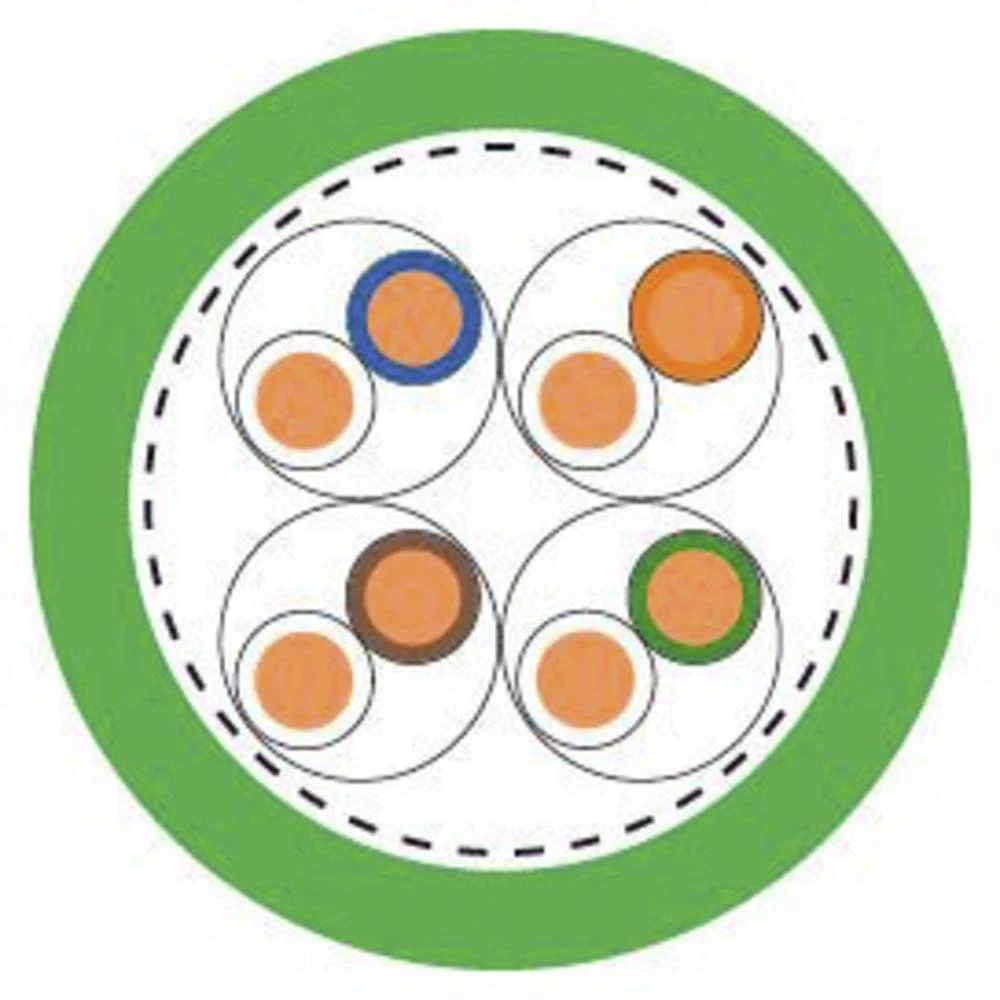

ETHERLINE® PN CAT.7 YA Ethernet kabel; fiksno polaganje; ETHERNET/IP, PROFINET; PROFINET® Primjena: Tip A; Kat.7; S/FTP; PVC; zelena

Ovaj tekst je strojno preveden.
