LAPP 2170950/1000 mrežni kabel ETHERLINE® LAN siva 1000 m

(0)

Dostupno online (Skladište: Njemačka)

Dostava: 20.07.2025 do 22.07.2025

Prodaja i slanje od: Architektengruppe S71 d.o.o.

-27 %

1,422.30 KM1,960.00 KM

Štedite 537.70 KM

Komada

(0)

Prikaži recenzije

Tehničke specifikacije

Tip kabela	ETHERLINE® LAN
Broj žica	8 x
Vanjski Ø	5 mm
Boja	siva
Sadržaj	1000 m
Bez halogena	ne
Proizvođač-br. dijela	2170950/1000
Izolacijski material	polivinilhlorid
Raspon temperature, fiksna instalacija (min.)	-20 °C
Raspon temperature, fiksna instalacija (maks.)	60 °C

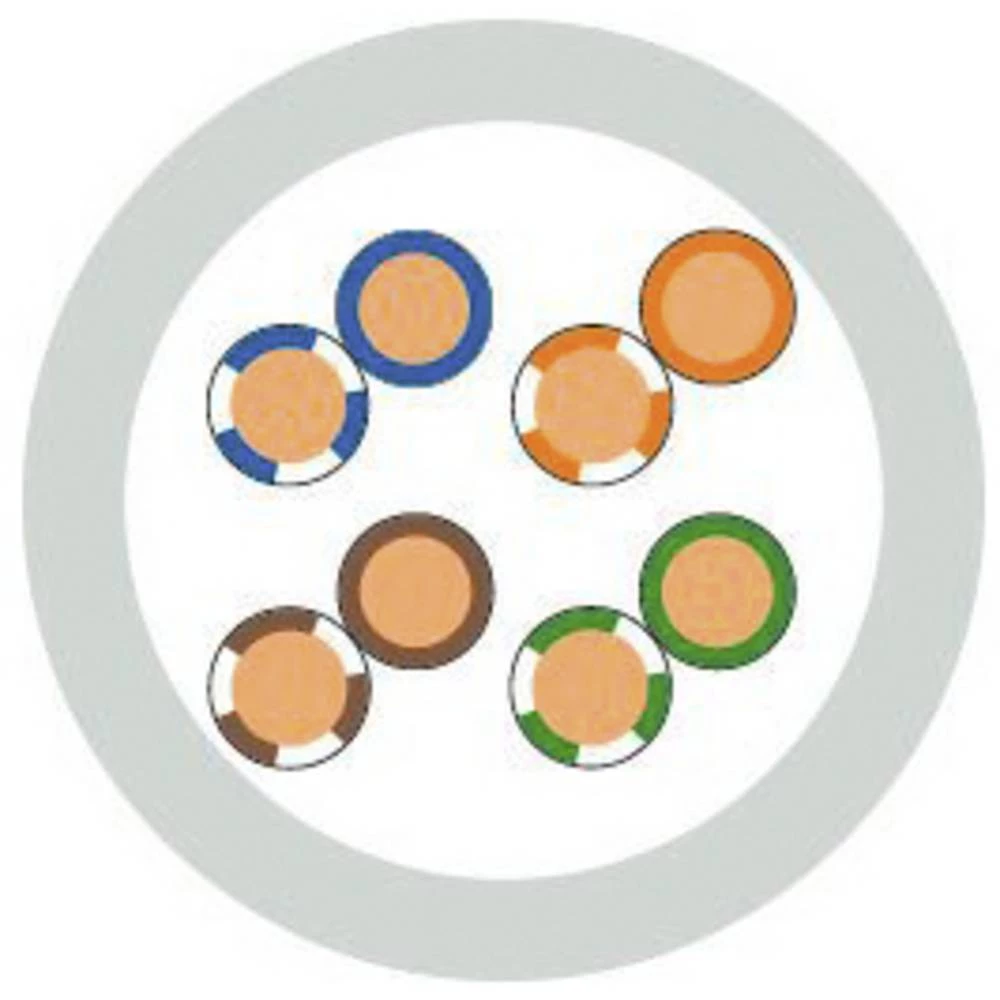

Tip	ETHERLINE® LAN Cat.5e U/UTP 4x2xAWG24
UV resistant	FALSE
Material core insulation	Other
Core identification	Colour
Flame retardant	According to IEC/EN 60332-1-2
Colour outer sheath	Grey
Material outer sheath	Polyvinyl chloride (PVC)
Permitted cable outer temperature after assembling without vibration	-20-60 °C
Number of cores	8
Halogen free according to EN IEC 60754-2	FALSE
Low smoke according to EN IEC 61034-2	FALSE
Outer diameter approximate	5.1 mm
Low smoke (according to EN 61034-2)	FALSE
Reaction-to-fire according to EN 13501-6: Class	Eca
AWG size	Other
Min. permitted bending radius, moving application/free movement	42.4 mm
Min. permitted bending radius, stationary application/permanent installation	21.2 mm
Specification core insulation	Polyethylene (PE)
Specification material outer sheath	Other
Cable geometry	Round
Core identification according to HD 308 S2	FALSE
Vrsta proizvoda	mrežni kabel
