LAPP 2170955/1000 mrežni kabel ETHERLINE® LAN narančasta 1000 m

Kataloški br:: 3350844 - 62
Oznaka:: 2170955/1000
EAN:: 4044777771554

(0)

Kataloški br:: 3350844 - 62
Oznaka:: 2170955/1000
EAN:: 4044777771554

Dostupno online (Skladište: Njemačka)

Dostava: 20.07.2025 do 22.07.2025

Prodaja i slanje od: Architektengruppe S71 d.o.o.

-27 %

2,135.90 KM2,940.00 KM

Štedite 804.10 KM

sa PDV Troškovi dostave

Komada

(0)

Prikaži recenzije

Tehničke specifikacije

Tip kabela	ETHERLINE® LAN
Broj žica	8 x
Vanjski Ø	6 mm
Boja	narančasta
Sadržaj	1000 m
Bez halogena	da/ne
Proizvođač-br. dijela	2170955/1000
Raspon temperature, fiksna instalacija (min.)	-20 °C
Raspon temperature, fiksna instalacija (maks.)	60 °C

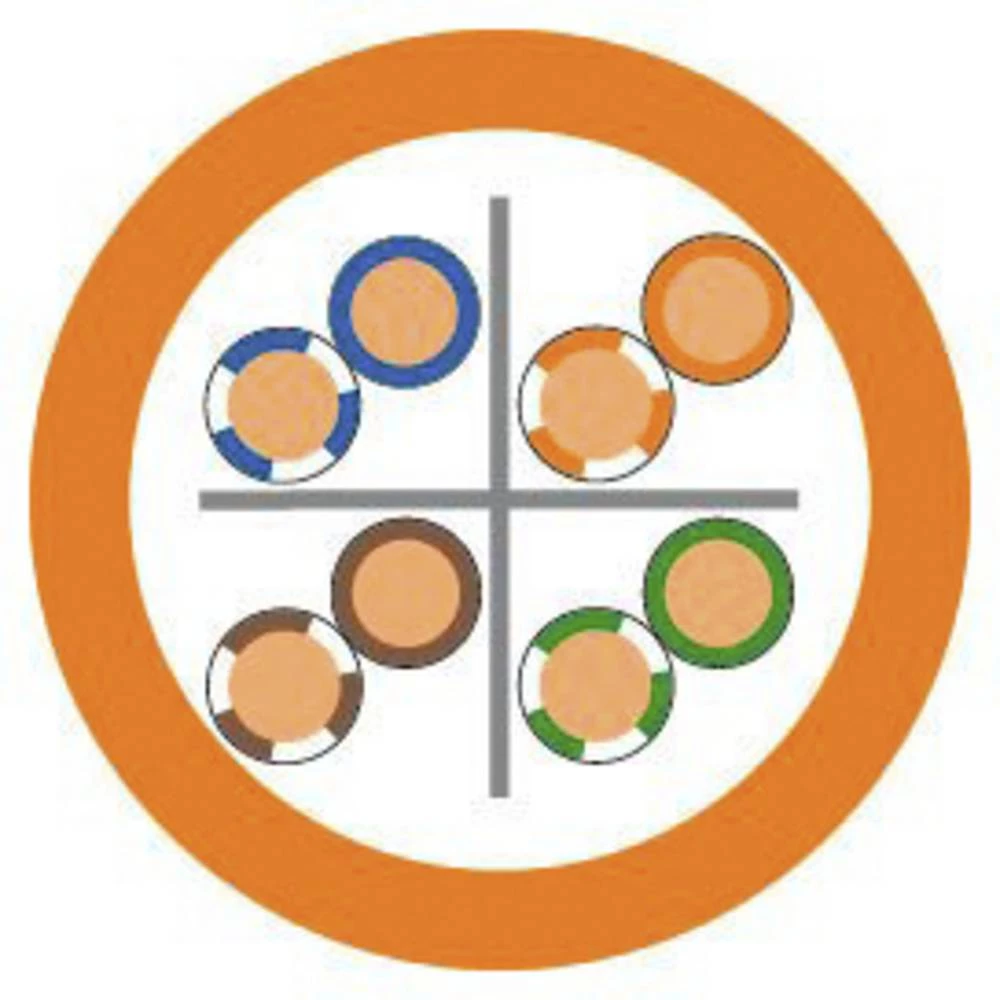

Tip	ETHERLINE® LAN Cat.6 U/UTP 4x2xAWG24 LSZH
UV resistant	FALSE
Material core insulation	Other
Core identification	Colour
Flame retardant	According to IEC/EN 60332-1-2
Colour outer sheath	Orange
Conductor material	Copper
Material outer sheath	Other
Permitted cable outer temperature after assembling without vibration	-20-60 °C
Number of cores	8
Halogen free according to EN IEC 60754-2	TRUE
Low smoke according to EN IEC 61034-2	FALSE
Outer diameter approximate	6 mm
Low smoke (according to EN 61034-2)	FALSE
Halogen free according to EN 60754-1/2	FALSE
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
AWG size	Other
Min. permitted bending radius, moving application/free movement	49.6 mm
Min. permitted bending radius, stationary application/permanent installation	24.8 mm
Specification core insulation	Polyethylene (PE)
Specification material outer sheath	Other
Cable geometry	Round
Core identification according to HD 308 S2	FALSE
Vrsta proizvoda	mrežni kabel

Opis

ETHERLINE® LAN Cat.6 U/UTP 4x2xAWG24 LSZH Ethernet kabel; fiksno polaganje; Ethernet, ETHERNET/IP; Kat.6; U/UTP; Bez halogena; narančasta
