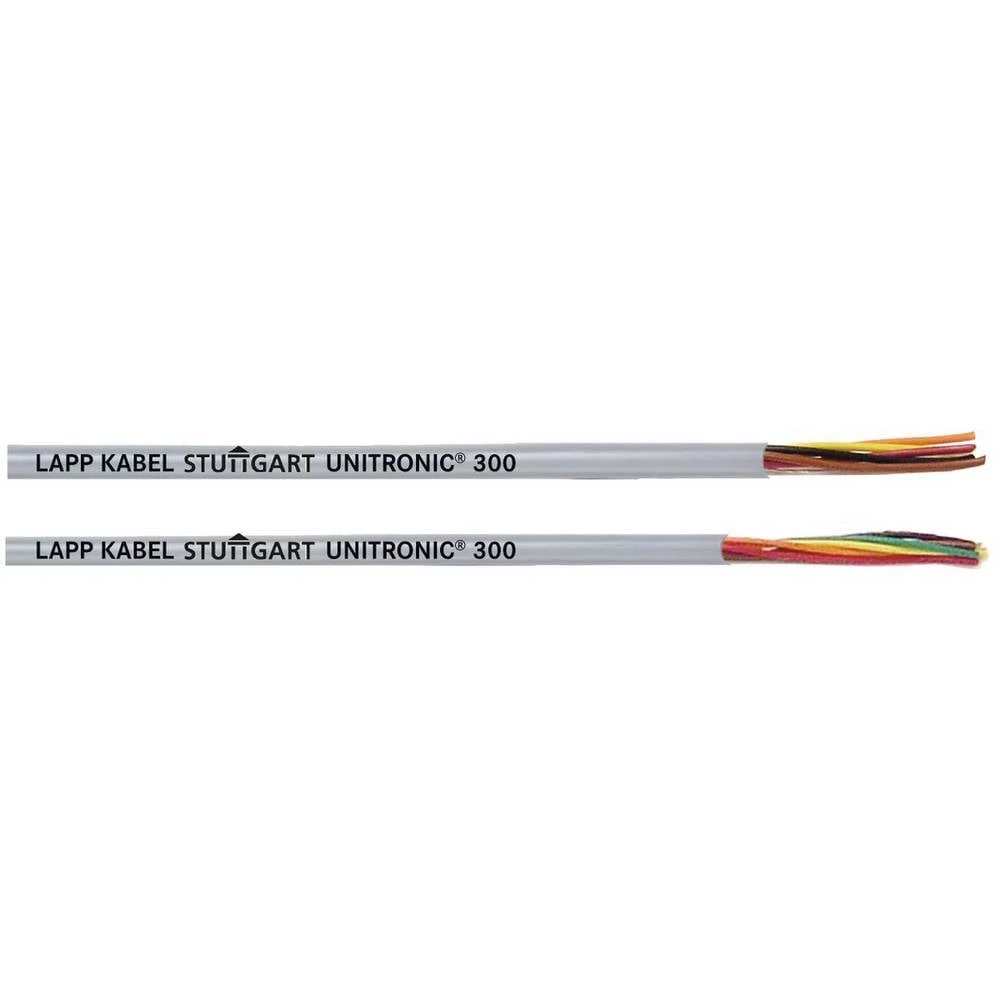

LAPP 302225/305 podatkovni kabel UNITRONIC® 300 siva 305 m
- Kataloški br:
- 3357211 - 62
- Oznaka:
- 302225/305
- EAN:
- 4044774755595
- Kataloški br:
- 3357211 - 62
- Oznaka:
- 302225/305
- EAN:
- 4044774755595
LAPP 302225/305 podatkovni kabel UNITRONIC® 300 siva 305 m
27 %
10,011.60 KM13,710.00 KM
Štedite 3,698.40 KM
Komada
Prodaja i slanje od:
Architektengruppe S71 d.o.o.
-27 %
10,011.60 KM13,710.00 KM
Štedite 3,698.40 KM
sa PDV
Troškovi dostave
Komada
Tehničke specifikacije
Tehničke specifikacije
| Tip kabela | UNITRONIC® 300 |
| Broj žica | 25 x |
| Vanjski Ø | 10 mm |
| Boja | siva |
| Sadržaj | 305 m |
| Bez halogena | ne |
| Proizvođač-br. dijela | 302225/305 |
| Izolacijski material | polivinilhlorid |
| Raspon temperature, fiksna instalacija (min.) | -40 °C |
| Raspon temperature, fiksna instalacija (maks.) | 105 °C |
| Tip | UNITRONIC® 300 22/25C |
| UV resistant | TRUE |
| Nominal cross section conductor | 0.38 mm² |
| Material core insulation | Polyvinyl chloride (PVC) |
| Core identification | Colour |
| Colour outer sheath | Grey |
| Conductor material | Copper |
| Material outer sheath | Polyvinyl chloride (PVC) |
| Permitted cable outer temperature after assembling without vibration | -40-105 °C |
| Number of cores | 25 |
| Halogen free according to EN IEC 60754-2 | FALSE |
| Low smoke according to EN IEC 61034-2 | FALSE |
| Outer diameter approximate | 10.5 mm |
| Low smoke (according to EN 61034-2) | FALSE |
| Conductor surface | Tinned |
| AWG size | Other |
| Min. permitted bending radius, stationary application/permanent installation | 42.0 mm |
| Specification core insulation | Other |
| Specification material outer sheath | Other |
| Cable geometry | Round |
| Core identification according to HD 308 S2 | FALSE |
| Vrsta proizvoda | podatkovni kabel |
