Upravljački vodovi

LAPP kontrolni vod 0046308/50 50 m

Kataloški br:: 3476168 - 62
Oznaka:: 0046308/50
EAN:: 4044777026937

(0)

Kataloški br:: 3476168 - 62
Oznaka:: 0046308/50
EAN:: 4044777026937

Rasprodano

Prodaja i slanje od: Architektengruppe S71 d.o.o.

825.00 KM

sa PDV Troškovi dostave

Komada

(0)

Prikaži recenzije

Tehničke specifikacije

Sadržaj	50 m
Proizvođač-br. dijela	0046308/50
Tip	ÖLFLEX® HEAT 180 EWKF C 3G1
Nominal cross section conductor	1 mm²
Material core insulation	Other
Core identification	Colour
Flame retardant	According to IEC/EN 60332-1-2
Nominal voltage U	500 V
Colour outer sheath	Black
Conductor material	Copper
Material outer sheath	Other
Conductor category	Class 5 = flexible
Permitted cable outer temperature after assembling without vibration	-50-180 °C
Nominal voltage U0	300 V
Number of cores	3
Outer diameter approximate	9.7 mm
With protective conductor	TRUE
Low smoke (according to EN 61034-2)	FALSE
Halogen free according to EN 60754-1/2	TRUE
Conductor surface	Tinned
Min. permitted bending radius, moving application/free movement	194.0 mm
Min. permitted bending radius, stationary application/permanent installation	58.2 mm
Specification core insulation	Other
Specification material outer sheath	Rubber - silicone rubber (SIR)
Cable geometry	Round
Core identification according to HD 308 S2	TRUE
Vrsta proizvoda	kontrolni vod

Opis

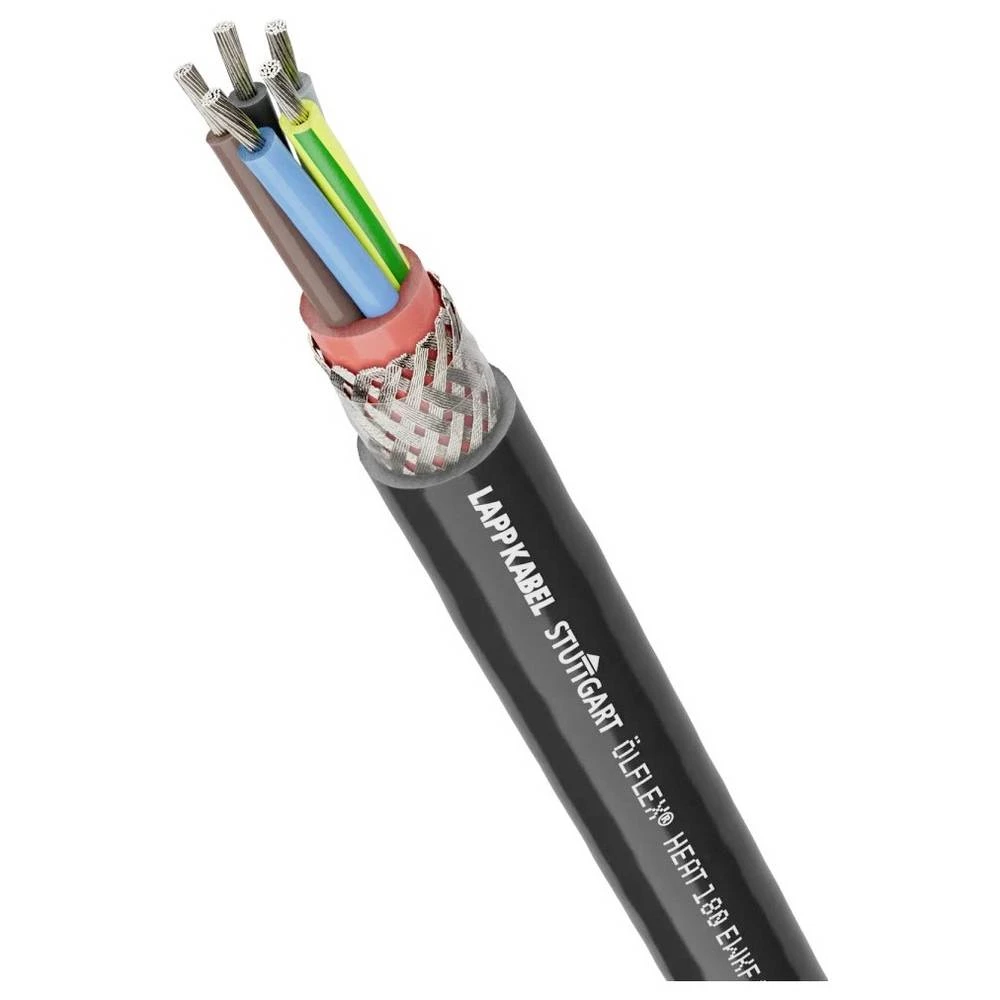

ÖLFLEX® HEAT 180 EWKF C 3G1 priključni kabel; 3G1; U 0 /U: 300/500 V; Silikon; Identifikacija žice: Boje; Oklopljena; -50°C - 180°C; Fleksibilna

Ovaj tekst je strojno preveden.
