Upravljački vodovi

LAPP kontrolni vod 0081001S/2500 2500 m

Kataloški br:: 3476194 - 62
Oznaka:: 0081001S/2500
EAN:: 4044777320479

(0)

Kataloški br:: 3476194 - 62
Oznaka:: 0081001S/2500
EAN:: 4044777320479

Rasprodano

Prodaja i slanje od: Architektengruppe S71 d.o.o.

-1 %

6,530.00 KM6,570.00 KM

Štedite 40.00 KM

sa PDV Troškovi dostave

Komada

(0)

Prikaži recenzije

Tehničke specifikacije

Sadržaj	2500 m
Proizvođač-br. dijela	0081001S/2500
Tip	ÖLFLEX® HEAT 205 SC 1X0,25 BK
Nominal cross section conductor	0.25 mm²
Material core insulation	Other
Nominal voltage U	500 V
Conductor material	Copper
Conductor category	Class 5 = flexible
Permitted cable outer temperature after assembling without vibration	-100-205 °C
Core colour	Black
Nominal voltage U0	300 V
Screen	FALSE
Number of cores	1
Outer diameter approximate	1.2 mm
Low smoke (according to EN 61034-2)	FALSE
Conductor surface	Tinned
Min. permitted bending radius, stationary application/permanent installation	4.8 mm
Specification core insulation	Other
Cable geometry	Round
Identification/coding colour core	Black
Core identification according to HD 308 S2	FALSE
Circuit integrity according to BS 6387 CWZ	FALSE
Circuit integrity according to EN 50200 annex E	FALSE
Circuit integrity according to BS 8434-2	FALSE
Circuit integrity according to BS 8491	No
Circuit integrity according to IEC 60331-21	FALSE
Flame retardant according to EN 60332-1-2	FALSE
Flame retardant according to EN 60332-3-21 (Cat A F/R)	FALSE
Flame retardant according to EN 60332-3-22 (Cat A)	FALSE
Flame retardant according to EN 60332-3-23 (Cat B)	FALSE
Flame retardant according to EN 60332-3-24 (Cat C)	FALSE
Flame retardant according to EN 60332-3-25 (Cat D)	FALSE
Halogen free according to EN 60754-1	FALSE
Halogen free according to EN 60754-2	FALSE
Halogen free according to EN 60754-3	FALSE
Vrsta proizvoda	kontrolni vod

Opis

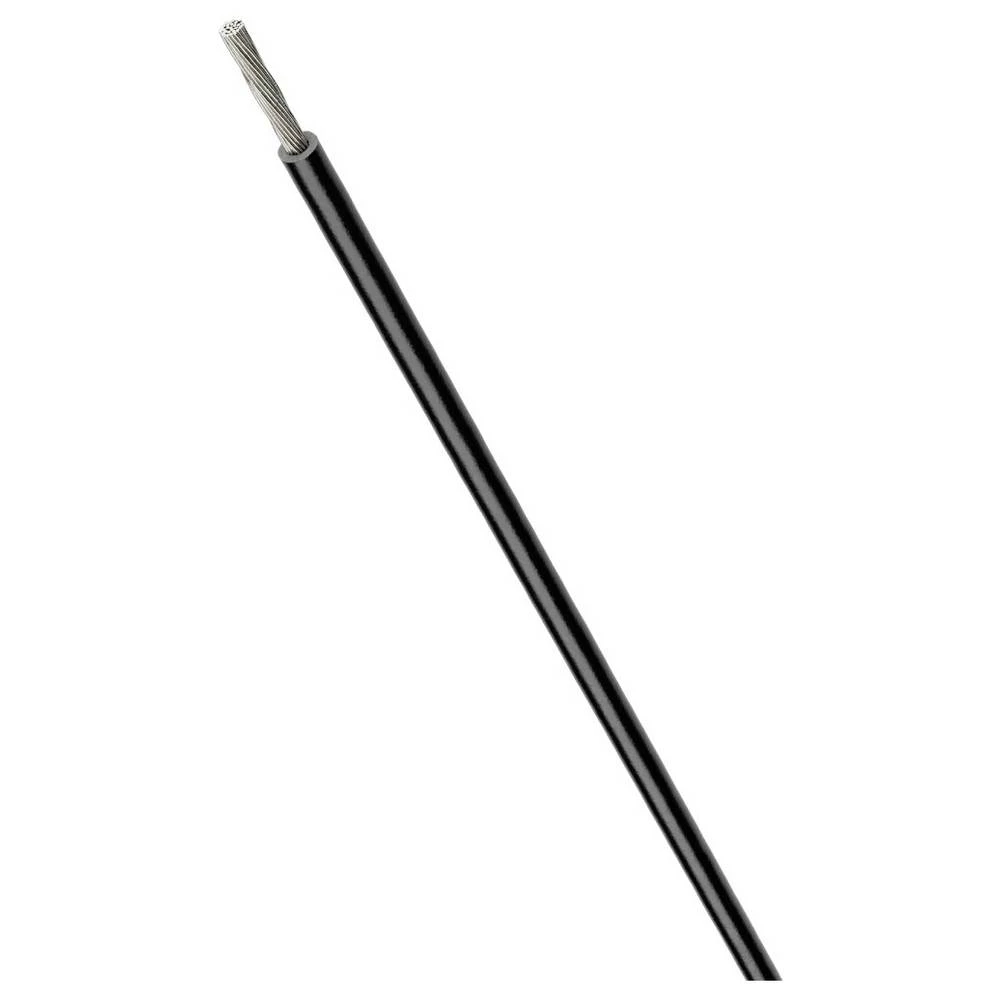

ÖLFLEX® HEAT 205 SC 1x0,25 BK jednožilni; 1x0,25; crni; kolut; U 0 /U: 300/500 V; FEP; -100°C - 205°C; fiksna instalacija

Ovaj tekst je strojno preveden.
