Instalacijski kabeli

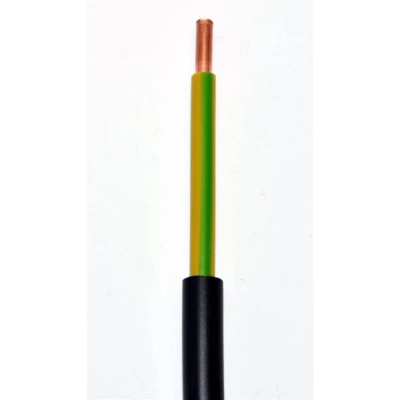

NYY-J 1x16 RG50 jakostrujni kabel 50 m

Kataloški br:: 2984719 - 62

(0)

Kataloški br:: 2984719 - 62

Dostupno online (Skladište: Njemačka)

Dostava: 02.11.2025 do 08.11.2025

Prodaja i slanje od: Architektengruppe S71 d.o.o.

575.00 KM

sa PDV Troškovi dostave

Komada

(0)

Prikaži recenzije

Tehničke specifikacije

Sadržaj	50 m
Proizvođač-br. dijela	NYY-J 1x16 RG50
Tip	NYY-J 1x16 RG50
Nominal cross section conductor	16 mm²
Material core insulation	Polyvinyl chloride (PVC)
Core identification	Colour
Weight	230 kg/km
Flame retardant	According to IEC/EN 60332-1-2
Armouring	FALSE
Lead sheath	FALSE
Drain wire	FALSE
Circuit integrity	None
Nominal voltage U	1 kV
Colour outer sheath	Black
Shape of conductor	Round
Conductor material	Copper
Material outer sheath	Polyvinyl chloride (PVC)
Conductor category	Class 1 = solid
Laminated sheath	FALSE
Fibre optic elements	FALSE
Permitted cable outer temperature during assembling/handling	-5-70 °C
Permitted cable outer temperature after assembling without vibration	-35-70 °C
Number of pilot/reduced conductors	0
Inner semi-conducting layer	FALSE
Outer semi-conducting layer	FALSE
Nominal voltage U0	0.6 kV
Screen	FALSE
Number of cores	1
Longitudinal water blocking conductors	FALSE
Halogen free according to EN IEC 60754-2	FALSE
Insulation integrity	None
Insulation integrity according to IEC 60331	FALSE
Concentric conductor	None
Low smoke according to EN IEC 61034-2	FALSE
Max. permitted conductor temperature	70 °C
Outer diameter approximate	11 mm
With protective conductor	TRUE
Low smoke (according to EN 61034-2)	FALSE
Conductive coating	FALSE
Halogen free according to EN 60754-1/2	FALSE
Oil resistant (according to IEC 60811-404)	FALSE
Conductor surface	Bare
Reaction-to-fire according to EN 13501-6: Class	Eca
Min. permitted bending radius, stationary application/permanent installation	165 mm
Cable geometry	Round
Suitable as installation cable	TRUE
Certified for shipboard application	FALSE
Suitable as medium-voltage cable	FALSE
Suitable as high-voltage cable	FALSE
Certified as airport lighting cable	FALSE
Vrsta proizvoda	jakostrujni kabel

Opis

prema DIN VDE 0276, jednožilni bakreni vodič, izolacija žile od PVC-a, vanjski plašt od PVC-a, boja plašta crna, za polaganje na otvorenom i u zatvorenom prostoru (u zemlju, kabelske kanale ili beton), polaganje u vodi dopušteno je samo ako mehanička oštećenja nakon polaganja isključena su

Ovaj tekst je strojno preveden.
