RZB 311518.002.7.19 311518.002.7.19 LED zidna svjetiljka bijela

Kataloški br:: 2975185 - 62
Oznaka:: 311518.002.7.19
EAN:: 4051859073888

(0)

Kataloški br:: 2975185 - 62
Oznaka:: 311518.002.7.19
EAN:: 4051859073888

Dostupno online (Skladište: Njemačka)

Dostava: 14.07.2025 do 16.07.2025

Prodaja i slanje od: Architektengruppe S71 d.o.o.

815.00 KM

sa PDV Troškovi dostave

Komada

(0)

Prikaži recenzije

RZB

Tehničke specifikacije

Boja	bijela
Klasa energetske učinkovitosti	n.rel. (EENRPS00)
Protection class according to IEC 61140	I
Outer diameter	460 mm
Lamp holder	Other
Conductor cross section	2.50 mm²
Connection type	Push-in clamp
Housing colour	White
Voltage type	AC
With movement sensor	FALSE
Suitable for lamp power	19-19 W
Type of grid	None
Type of control gear	LED operating device current-controlled
Colour rendering index CRI	80-89
With light sensor	FALSE
Suitable for suspended mounting	FALSE
Number of poles	4
Height/depth	120 mm
Housing material	Steel
Lamp type	LED not exchangeable
Suitable for light line configuration	FALSE
Suitable for emergency lighting	FALSE
Light outlet	Direct/indirect
Light distribution	Symmetric
Material cover	Plastic, opal
Impact strength	IK03
Nominal voltage	220-240 V
Emergency power supply integrated	FALSE
Degree of protection (IP)	IP40
With light source	TRUE
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24	FALSE
Covering of the luminaire with thermally insulating material possible	TRUE
Suitable for number of light sources	8
Suitable for wall mounting	TRUE
Suitable for built-in mounting	FALSE
With control gear	TRUE
Suitable for workplace according to EN 12464-1	FALSE
Suitable for surface mounting	TRUE
Beam angle	> 80° - Extreme wide beam
Nominal current	79-86 mA
Colour temperature	3000-3000 K
Max. system power	19 W
Rated luminous flux according to IEC 62722-2-1	2100 lm
Colour of light	White
With air slots	FALSE
Constant light output (CLO)	FALSE
IFTTT support available	FALSE
Type of wiring	Suitable for loop-through wiring
Rated life time L80/B10 at 25 °C	50000 h
Colour consistency (McAdam ellipse)	SDCM4
Total harmonic distortion	0.15
Photobiological safety according to EN 62471	RG0
Degree of protection (NEMA)	Other
Rated ambient temperature according to IEC 62722-2-1	25-25 °C
Filament test according to IEC 60695-2-11	650 °C - 30 s
Dimming 0-10 V	FALSE
Dimming 1-10 V	FALSE
Dimming DALI	FALSE
Dimming DMX	FALSE
Dimming potentiometer (integrated)	FALSE
Dimming GPRS	FALSE
Dimming LineSwitch	FALSE
Dimming manufacturer's proprietary system	FALSE
Dimming mains voltage modulation	FALSE
Dimming phase cut-off (trailing edge)	FALSE
Dimming phase cut-on (leading edge)	FALSE
Dimming programmable	FALSE
Dimming RF	FALSE
Dimming Sine Wave Reduction	FALSE
Dimming Touch and Dim	FALSE
Dimming Zigbee	FALSE
Dimming with push-button	FALSE
No dim function	TRUE
Light distributor	None
Dimming depending on control gear	FALSE
Luminaire efficacy	111 lm/W
Dimming DSI	FALSE
Unified Glare Ratio (UGR)	19.10
Operation by Bluetooth	FALSE
Compatible with Apple HomeKit	FALSE
Compatible with Google Assistant	FALSE
Compatible with Amazon Alexa	FALSE
Max. number of luminaires per miniature circuit breaker C16 (MCB)	85
Max. number of luminaires per miniature circuit breaker B16 (MCB)	50
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)	80 %
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)	10 %
Dimming DALI-2	FALSE
Colour of light adjustable	No
Luminous flux adjustable	No
Beam angle adjustable	No
Exchangeable control gear	TRUE
Suitable for ceiling mounting	TRUE
Surface protection housing	Powder coating
Power factor	0.95
Vrsta proizvoda	LED zidna svjetiljka

Opis

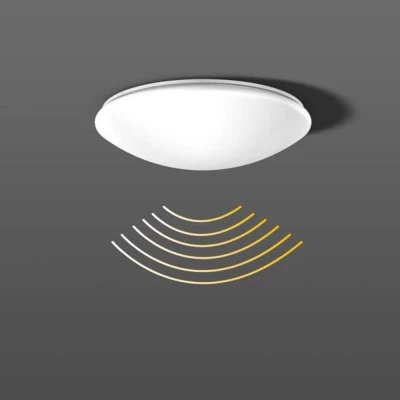

Ukrasno okruglo nadgradno svjetlo. Metalni okov praškasto lakiran. Difuzor od plastike koja ne žuti (PMMA) opal. Pričvršćivanje difuzora patentiranom tehnologijom zatvaranja (tlačno zatvaranje). Pogodan za stropnu montažu, zidnu montažu. S integriranim HF detektorom pokreta. HF detektor 5,8 GHz ISM frekvencijski pojas. Osjetljivost/doseg: 1-8 m u promjeru, podesivo od 20-100%. Kontrola vremena podesiva od 1 sekunde do 15 minuta u 8 razina. Područje detekcije: 120° Kao glavno svjetlo do 800 W (omsko opterećenje), 500 W (fluorescentna svjetiljka, LED) / 400 A, 200 µs početne struje. Samo djelomično pogodan za vanjsku upotrebu zbog osjetljive reakcije na sve pokrete.

Ovaj tekst je strojno preveden.
