Deckenleuchten

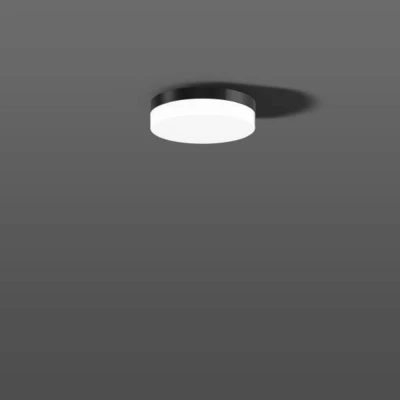

RZB 312132.0031.191 312132.0031.191 LED zidna svjetiljka siva

Kataloški br:: 2975715 - 62
Oznaka:: 312132.0031.191
EAN:: 4051859183099

(0)

Kataloški br:: 2975715 - 62
Oznaka:: 312132.0031.191
EAN:: 4051859183099

Dostupno online (Skladište: Njemačka)

Dostava: 15.07.2025 do 17.07.2025

Prodaja i slanje od: Architektengruppe S71 d.o.o.

675.00 KM

sa PDV Troškovi dostave

Komada

(0)

Prikaži recenzije

RZB

Tehničke specifikacije

Boja	siva
Klasa energetske učinkovitosti	n.rel. (EENRPS00)
Protection class according to IEC 61140	I
Outer diameter	230 mm
Lamp holder	Other
Conductor cross section	1.50 mm²
Connection type	Push-in clamp
Housing colour	Anthracite
Voltage type	AC
With movement sensor	FALSE
Suitable for lamp power	13-13 W
Type of grid	None
Type of control gear	Not required
Colour rendering index CRI	80-89
With light sensor	FALSE
Suitable for suspended mounting	FALSE
Number of poles	3
Height/depth	63 mm
Housing material	Aluminium
Lamp type	LED exchangeable
Suitable for light line configuration	FALSE
Suitable for emergency lighting	FALSE
Light outlet	Direct
Light distribution	Symmetric
Material cover	Glass opal
Impact strength	IK03
Nominal voltage	220-230 V
Emergency power supply integrated	FALSE
Degree of protection (IP)	IP65
With light source	TRUE
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24	FALSE
Covering of the luminaire with thermally insulating material possible	TRUE
Suitable for number of light sources	1
Suitable for wall mounting	TRUE
Suitable for built-in mounting	FALSE
With control gear	FALSE
Suitable for workplace according to EN 12464-1	FALSE
Suitable for surface mounting	TRUE
Beam angle	> 80° - Extreme wide beam
Nominal current	57-59 mA
Colour temperature	3000-3000 K
Max. system power	13 W
Rated luminous flux according to IEC 62722-2-1	1000 lm
Colour of light	White
With air slots	FALSE
Constant light output (CLO)	FALSE
IFTTT support available	FALSE
Type of wiring	Suitable for loop-through wiring
Colour consistency (McAdam ellipse)	SDCM3
Photobiological safety according to EN 62471	RG1
Degree of protection (NEMA)	Other
Rated ambient temperature according to IEC 62722-2-1	-20-30 °C
Filament test according to IEC 60695-2-11	960 °C - 30 s
Dimming 0-10 V	FALSE
Dimming 1-10 V	FALSE
Dimming DALI	FALSE
Dimming DMX	FALSE
Dimming potentiometer (integrated)	FALSE
Dimming GPRS	FALSE
Dimming LineSwitch	FALSE
Dimming manufacturer's proprietary system	FALSE
Dimming mains voltage modulation	FALSE
Dimming phase cut-off (trailing edge)	FALSE
Dimming phase cut-on (leading edge)	FALSE
Dimming programmable	FALSE
Dimming RF	FALSE
Dimming Sine Wave Reduction	FALSE
Dimming Touch and Dim	FALSE
Dimming Zigbee	FALSE
Dimming with push-button	FALSE
No dim function	TRUE
Light distributor	None
Dimming depending on control gear	FALSE
Luminaire efficacy	77 lm/W
Dimming DSI	FALSE
Unified Glare Ratio (UGR)	22.30
Operation by Bluetooth	FALSE
Compatible with Apple HomeKit	FALSE
Compatible with Google Assistant	FALSE
Compatible with Amazon Alexa	FALSE
Max. number of luminaires per miniature circuit breaker C16 (MCB)	182
Max. number of luminaires per miniature circuit breaker B16 (MCB)	182
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)	70 %
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)	10 %
Dimming DALI-2	FALSE
Colour of light adjustable	No
Luminous flux adjustable	No
Beam angle adjustable	No
Exchangeable control gear	FALSE
Suitable for ceiling mounting	TRUE
Surface protection housing	Powder coating
Vrsta proizvoda	LED zidna svjetiljka

Opis

Ukrasno okruglo LED nadgradno svjetlo za unutarnju i vanjsku upotrebu. Armatura od tlačno lijevanog aluminija, premazana prahom. Standardno s membranskim ventilom GoreT Protective Vents za sprječavanje kondenzacije. Ručno puhano troslojno opal staklo (triplex staklo) satin mat. Pričvršćivanje stakla s bajonet bravom. Triplex staklo osigurava posebno homogenu, meku svjetlost bez blještanja. Pogodan za stropnu montažu, zidnu montažu. Najlakša instalacija zahvaljujući plug-in sustavu plug-in play. Veliki priključni prostor na stražnjoj strani za praktično polaganje spojnog kabela također je savršen za prolazno ožičenje. Robovsko svjetlo. Može se koristiti samo u kombinaciji s odgovarajućim glavnim svjetlom.

Ovaj tekst je strojno preveden.
