Ugradbeni reflektori

RZB 901700.002 LED stropni reflektor bijela

Kataloški br:: 2977325 - 62
Oznaka:: 901700.002
EAN:: 4051859498971

(0)

Kataloški br:: 2977325 - 62
Oznaka:: 901700.002
EAN:: 4051859498971

Paulmann Spircle 93372 LED ugradna svjetiljka 8 W toplo bijela bijela<br

(0)

Dostupno online (Skladište: Njemačka)

220.00 KM

Paulmann 93408 Ugrađeno svjetlo 3-dijelni komplet ATT.CALC.EEK: A+ (A++ - E) 6.50 W Toplo-bijela Crna, Srebrna

(0)

Dostupno online (Skladište: Njemačka)

190.00 KM

Paulmann 93406 Ugrađeno svjetlo 3-dijelni komplet ATT.CALC.EEK: A+ (A++ - E) 6.50 W Toplo-bijela Bijela, Zlatna

(0)

Dostupno online (Skladište: Njemačka)

195.00 KM

Paulmann 93410 Ugrađeno svjetlo 3-dijelni komplet ATT.CALC.EEK: A+ (A++ - E) 6.50 W Toplo-bijela Bijela, Srebrna

(0)

Dostupno online (Skladište: Njemačka)

195.00 KM

Paulmann Set Nova Plus 93081 LED ugradna svjetiljka 18 W toplo bijela crna

(0)

Dostupno online (Skladište: Njemačka)

255.00 KM

Rasprodano

Prikaži alternativne proizvode

Prodaja i slanje od: Architektengruppe S71 d.o.o.

340.00 KM

sa PDV Troškovi dostave

Komada

(0)

Prikaži recenzije

RZB

Tehničke specifikacije

Boja	bijela
Klasa energetske učinkovitosti	n.rel. (EENRPS00)
Protection class according to IEC 61140	II
Outer diameter	172 mm
Reflector	None
Lamp holder	None
Conductor cross section	2.50 mm²
Connection type	Push-in clamp
Housing colour	White
Surface protection	Powder coating
Voltage type	AC
With movement sensor	FALSE
Suitable for lamp power	16-16 W
Type of control gear	LED operating device current-controlled
Colour rendering index CRI	80-89
Suitable for wall mounting	FALSE
With light sensor	FALSE
Suitable for suspended mounting	FALSE
Number of poles	3
Height/depth	2 mm
Housing material	Aluminium
Lamp type	LED not exchangeable
Light outlet	Direct
Light distribution	Symmetric
Material cover	Plastic, opal
Impact strength	IK05
Nominal voltage	220-240 V
Emergency power supply integrated	FALSE
Degree of protection (IP)	IP44
With light source	TRUE
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24	FALSE
Covering of the luminaire with thermally insulating material possible	FALSE
Suitable for number of light sources	1
Suitable for built-in mounting	TRUE
With control gear	TRUE
Suitable for workplace according to EN 12464-1	FALSE
Suitable for surface mounting	FALSE
Beam angle	> 80° - Extreme wide beam
Surface brushed	FALSE
Colour temperature	3000-4000 K
Max. system power	16 W
Rated luminous flux according to IEC 62722-2-1	1800 lm
Adjustability	Not adjustable
Suitable for traverse mounting	FALSE
Suitable for pedestal/floor mounting	FALSE
Suitable for light-track mounting	FALSE
Suitable for clamp-mounting	FALSE
Constant light output (CLO)	FALSE
IFTTT support available	FALSE
Luminous flux	1800-1800 lm
Type of wiring	Suitable for loop-through wiring
Rated lifetime L70/B50 at 25 °C	50000 h
Colour consistency (McAdam ellipse)	SDCM4
Photobiological safety according to EN 62471	RG0
Degree of protection (NEMA)	Other
Rated ambient temperature according to IEC 62722-2-1	-30-40 °C
Filament test according to IEC 60695-2-11	750 °C - 30 s
LED nominal current at constant current	67-73 mA
Dimming 0-10 V	FALSE
Dimming 1-10 V	FALSE
Dimming DALI	FALSE
Dimming DMX	FALSE
Dimming potentiometer (integrated)	FALSE
Dimming GPRS	FALSE
Dimming LineSwitch	FALSE
Dimming manufacturer's proprietary system	FALSE
Dimming mains voltage modulation	FALSE
Dimming phase cut-off (trailing edge)	FALSE
Dimming phase cut-on (leading edge)	FALSE
Dimming programmable	FALSE
Dimming RF	FALSE
Dimming Sine Wave Reduction	FALSE
Dimming Touch and Dim	FALSE
Dimming Zigbee	FALSE
Dimming with push-button	FALSE
No dim function	TRUE
Light distributor	None
Dimming depending on control gear	FALSE
Luminaire efficacy	113 lm/W
Suitable for low voltage cable system	FALSE
Dimming DSI	FALSE
Unified Glare Ratio (UGR)	28.30
Compatible with Apple HomeKit	FALSE
Compatible with Google Assistant	FALSE
Compatible with Amazon Alexa	FALSE
Max. number of luminaires per miniature circuit breaker C16 (MCB)	221
Max. number of luminaires per miniature circuit breaker B16 (MCB)	130
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)	70 %
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)	50 %
Dimming DALI-2	FALSE
Colour of light adjustable	Positions
Luminous flux adjustable	No
Beam angle adjustable	No
Exchangeable control gear	FALSE
Built-in diameter	150-150 mm
Suitable for ceiling mounting	TRUE
Built-in height/depth	140 mm
Vrsta proizvoda	LED stropni reflektor

Opis

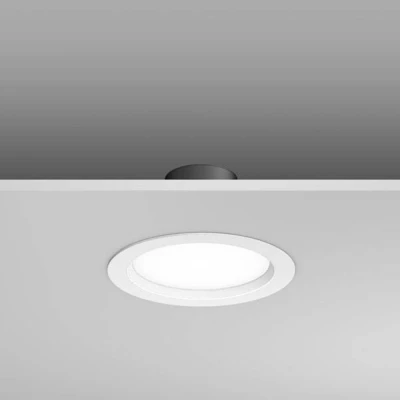

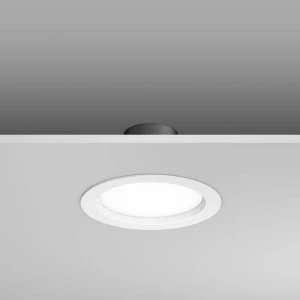

Okrugla ugradna svjetiljka. Kućište od polikarbonata otpornog na UV zračenje. Poklopni prsten od tlačno lijevanog aluminija, plastificiran. Difuzor UV-otporna plastika (polikarbonat), opal, otporan na udarce. MultiColour: Temperatura boje podesiva s preklopnim elementom. Izbor 3000 K ili 4000 K. Tvornički postavljeno na 4000 K. Ugradnja bez alata pomoću opružnog pričvršćivanja. Prikladno za prolazno ožičenje. Integrirani operativni uređaji.

Ovaj tekst je strojno preveden.
