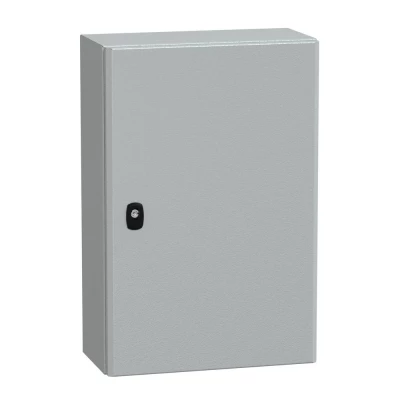

Schneider Electric PanelSeT S3DB NSYS3D6420P razvodni ormar 400 x 600 x 200 čelik siva 1 St.

(0)

Dostupno online (Skladište: Njemačka)

Dostava: 04.11.2025 do 10.11.2025

Prodaja i slanje od: Architektengruppe S71 d.o.o.

Cijena na upit

0.00 KM

Komada

(0)

Prikaži recenzije

Tehničke specifikacije

Materijal	čelik
Boja	siva
Širina	400 mm
Visina	600 mm
Težina	0
Sadržaj	1 St.
Tip	PanelSeT S3DB
dim.	(Š x V x D) 400 x 600 x 200 mm
Dubina	200 mm
Proizvođač-br. dijela	NSYS3D6420P
Colour	Grey
Width	400
Height	600 mm
Depth	200 mm
RAL-number	7035
With mounting plate	TRUE
Number of doors	1
Number of locks	1
Suitable for wall mounting	TRUE
With glazed door	FALSE
Couplable	FALSE
Material quality	Other
Material	Steel
Impact strength	IK10
Degree of protection (IP)	IP66
Suitable for outdoor set-up	TRUE
Suitable for metrical mounting	TRUE
Mounting plate depth-adjustable	FALSE
With ventilation door	FALSE
Surface finishing	Powder coating
With rear door	FALSE
Suitable for wall built-in	FALSE
Pitched roof	FALSE
Pole fastening	TRUE
Degree of protection (NEMA)	4X
Max. permitted load of the enclosure according to IEC 62208	250
Max. permitted load of the door(s) according to IEC 62208	50
Max. permitted load of the mounting plate according to IEC 62208	250
Floor standing wall model	FALSE
Freestanding	FALSE
Corner model	FALSE
Intermediate mounting	FALSE
Vrsta proizvoda	razvodni ormar
